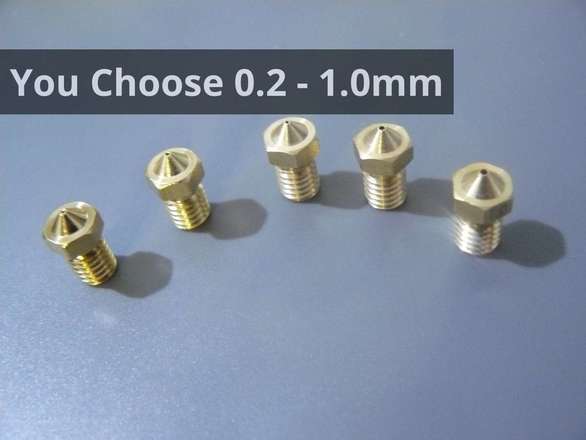

Please choose output diameter from the drop-down selector…
This is your typical brass 3d printer nozzle from China, although these are fairly decent ones, standard M6 thread and 12.5mm total length end to end. 1.75mm filament.
Don’t ask me “will this fit my 3d printer” that is for you to decide.

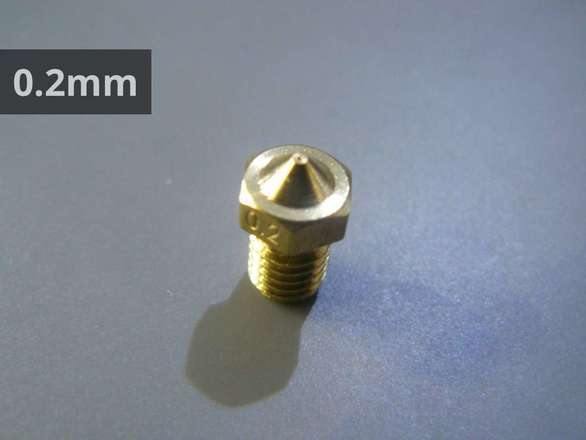

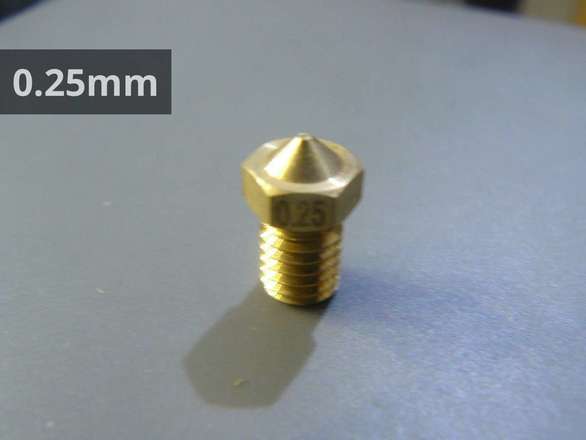

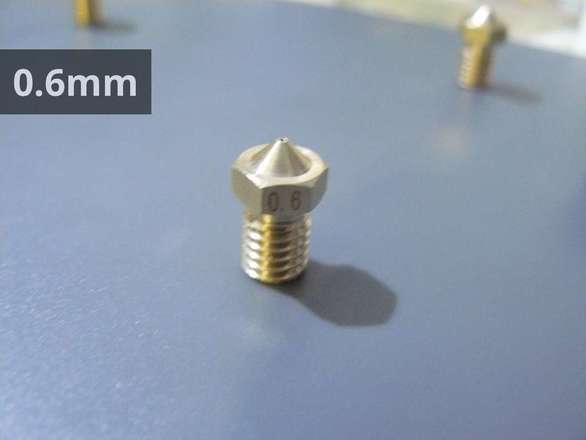

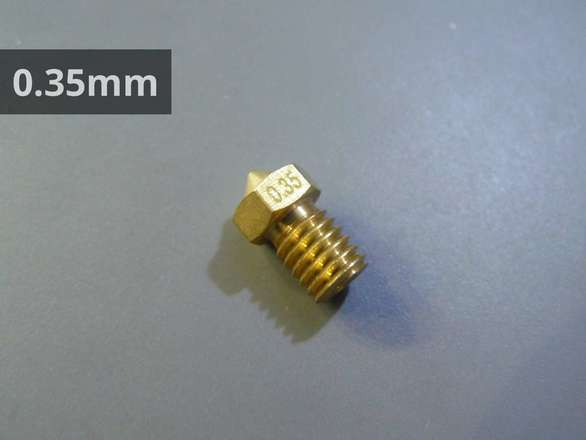

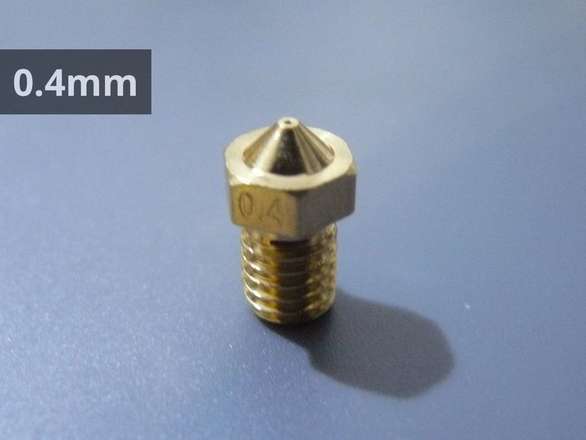

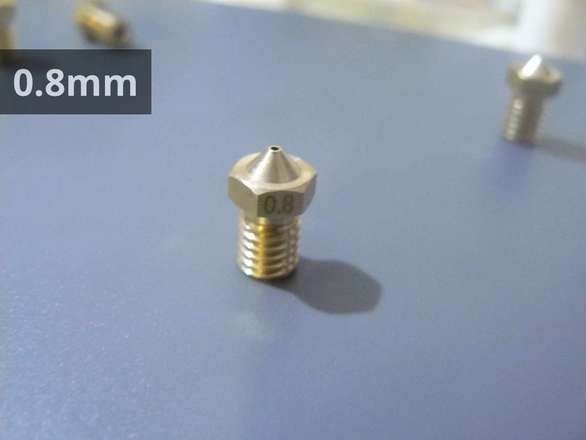

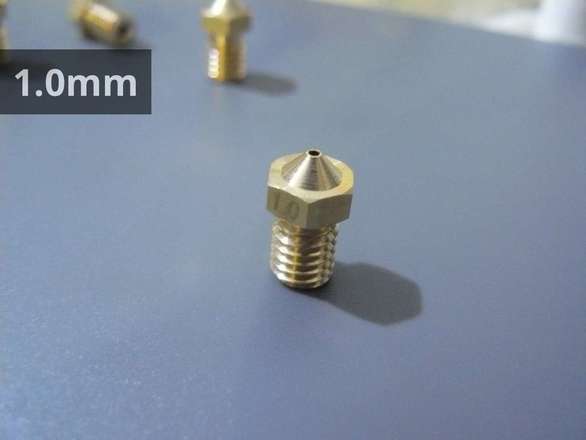

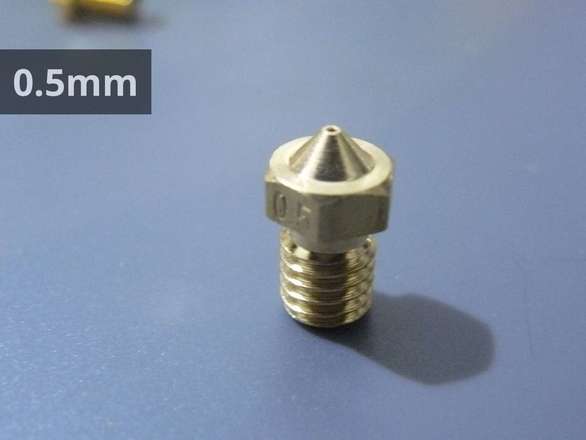

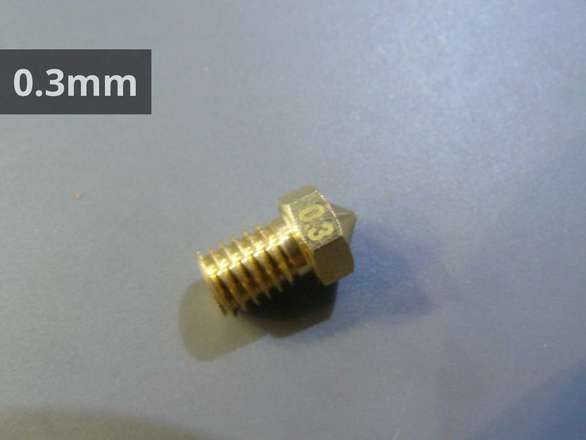

I have various output sizes available - 0.4mm is the most common size for general purpose printing, larger diameters print faster but rougher generally speaking. Sizes less than 0.4mm are naturally more susceptible to clogging, but finer detail is possible.
Don’t ask me “what are good settings for X size nozzle”, again, that is up to you to figure out.
With that said, as a general rule, layer height about 0.75 times the nozzle, line width about nozzle+0.1, and as you go up in sizes, you may want to decrease your outer wall speed, increase retraction prime, use a higher temperature, increase fan speed and increase the wall thickness so you still have more than one perimeter.
Not especially related, but the below (or in images on Trade Me) video is a really interesting exploration into wear on brass nozzles with abrasive filaments. Not produced by me, just something I found interesting.
All of our products are shipped from Christchurch, New Zealand using CourierPost for NZ, and Airmail for international.
