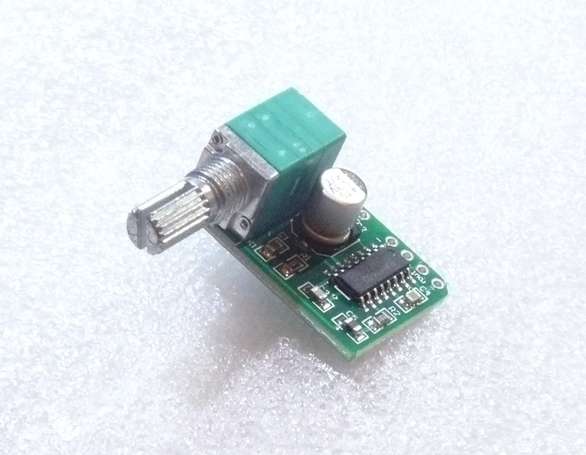

This is a Class D stereo 3W amplifier with a volume control (that has an integrated power switch).
Based on the PAM8403 Amplifier IC (Google for datasheet), this little board provides left and right Class D outputs to drive 4 or 8 Ohm speakers, one per channel.
Output power (into 4 Ohm speaker and supply voltage of 5v) is up to 3W per channel.

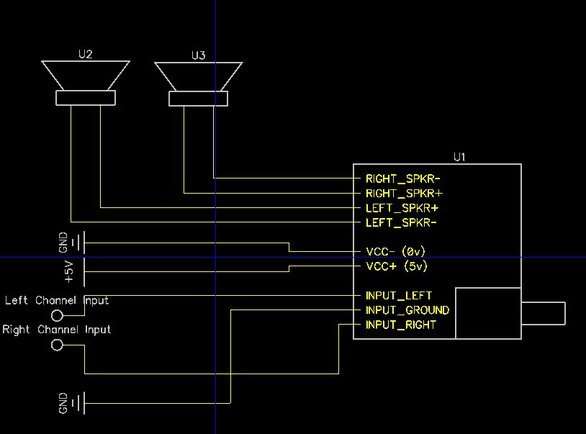

The board is silk screened to show you the connections, namely, + and - for the right speaker, + and - for the left speaker, power + and -, and the input Left, shared input ground, and Right.
This amplifier is the perfect companion to the JQ6500 Mp3 Modules which I also sell so you can get stereo output instead of just mono.
CAUTION! This is a Class D amplifier, this means that the two speakers must be totally separate (each has a + and - totally separate from the other), you can not use this amplifier to drive headphones because headphones have their speakers connected at a common point, if you were to connect any of the ROut to any of the LOut, you are effectively short circuiting the amplifier, so don't do that!
