Piezo Element ("Speaker"), Passive, Cased with Mounting Ears

$1.65
Price
$1.65
In Stock
Approx 22
More may be available, please enquire.

Trade Me Logo, Click to View Trade Me Listing Detailsor... on Trade Me

Details

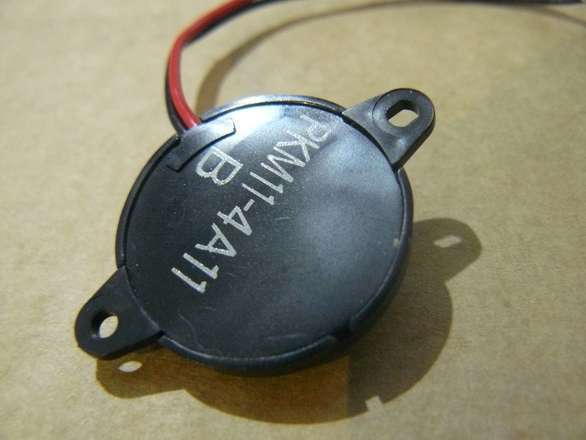

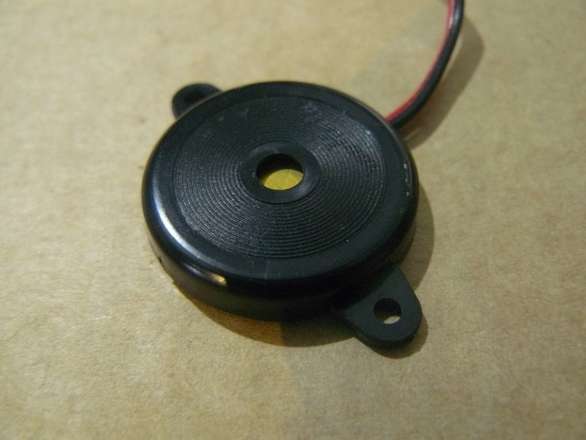

This is a typical plastic case piezo element, approx 24mm diameter, Approx 4.5mm thick. Has mounting "ears" for about 2mm screws, pitch of the holes about 29mm

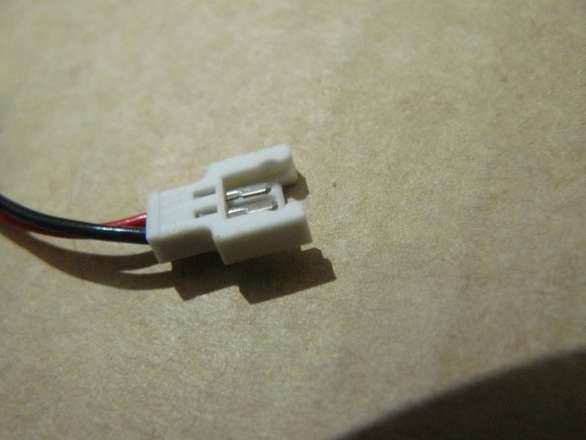

Has some unknown connector type on it, just chop that off and solder the wires to something more useful for your purposes.

A piezo element can be used to produce a simple sound by applying a pulse-width-modulation at appropriate frequencies, by changing the PWM frequency, you change the frequency of the sound, in this way you can play simple melodies.

Simply google for examples of using piezo elements (sometimes called piezo speakers)
