This product information has been archived and is not currently planned for restocking.
Please feel free to contact us to discuss this product, we can possibly suggest an alternative or see if it can be sourced specially for you.

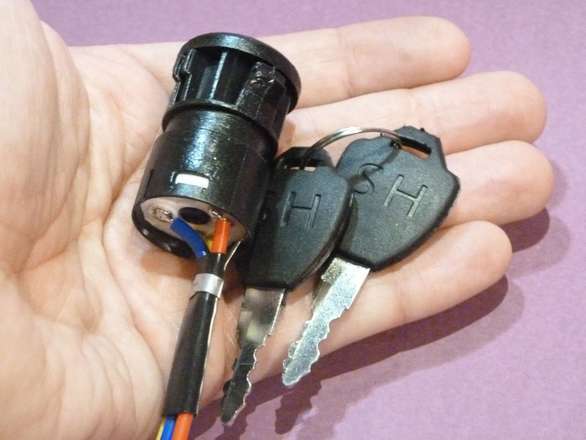

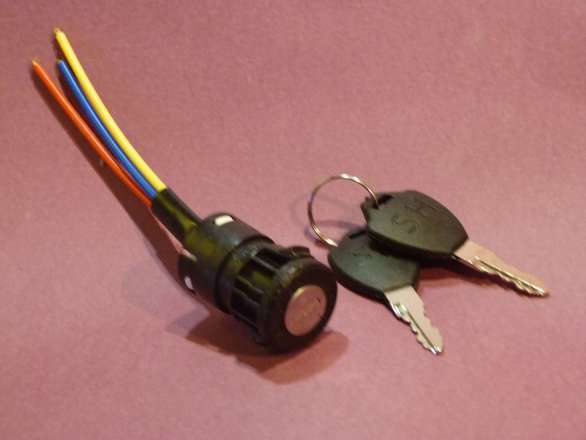

This keyswitch comes with two matching keys, and has 2 positions plus an off.

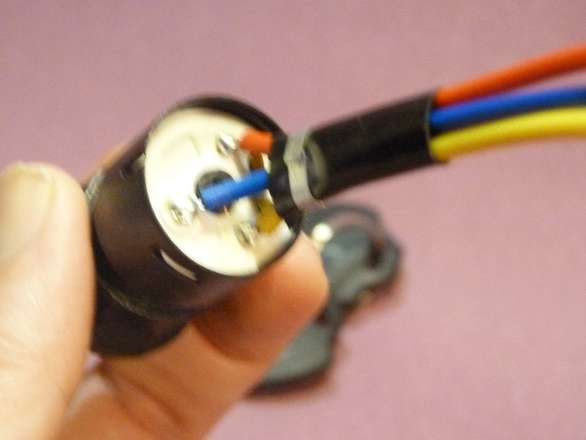

In the off position, none of the wires are connected
In the first on position the red and yellow wire are connected
In the second on position all three wires are connected.
All positions are latching, not momentary (that is, you can’t use it like a “start” key, but could use it like a “run” key)

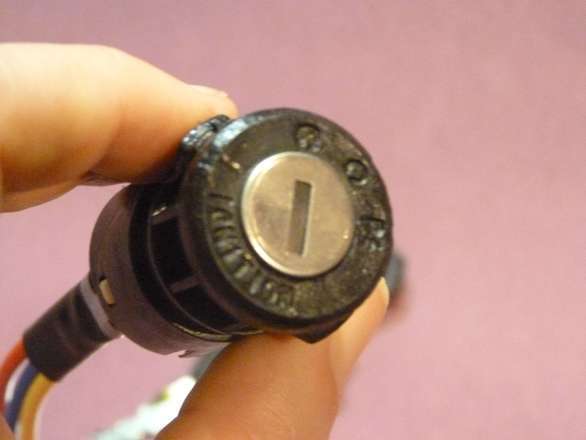

The key can only be removed in the off position.
The keys are different lock to lock, but there are not that many unique cuts I think, if you buy more than one at a time I can make sure they are different for you if you care about that, but there’s no markings on the locks or keys to indicate which cut they are.

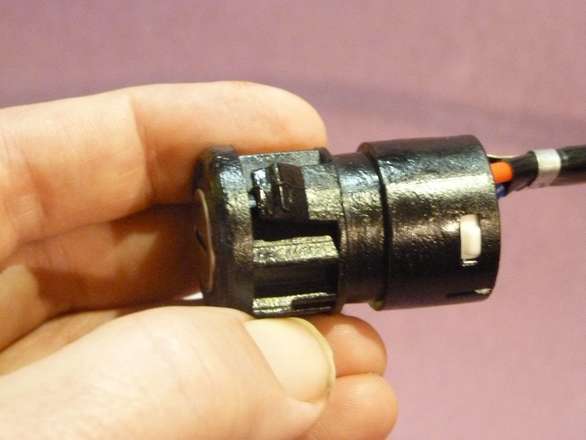

You will want something like a 26mm hole, with a notch, they appear to press in from the front.
I have zero specifications as to current or anything else.
All of our products are shipped from Christchurch, New Zealand using CourierPost for NZ, and Airmail for international.
