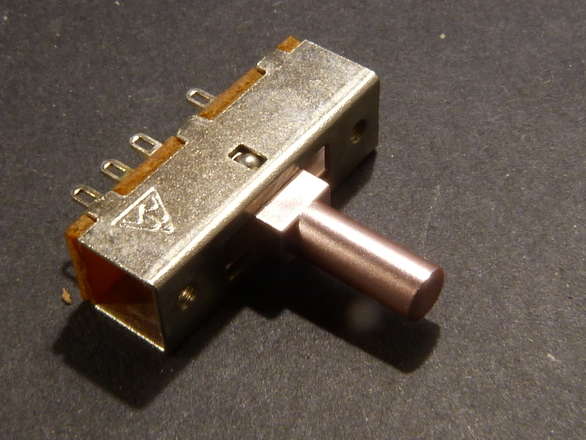

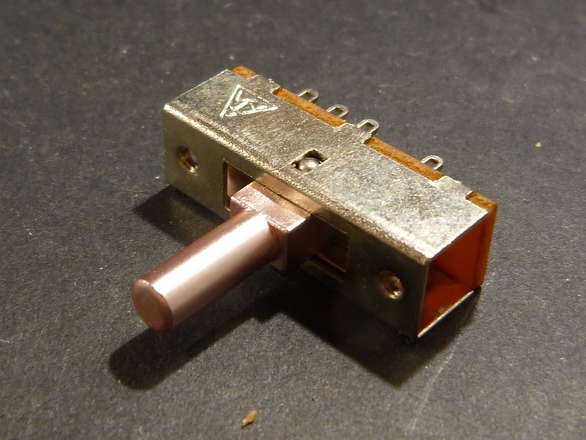

Current batch has a “Light Rose Gold” coloured handle (maybe more like “Rose Silver”).

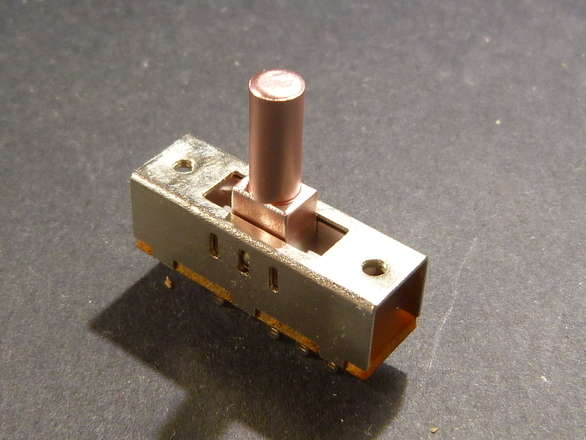

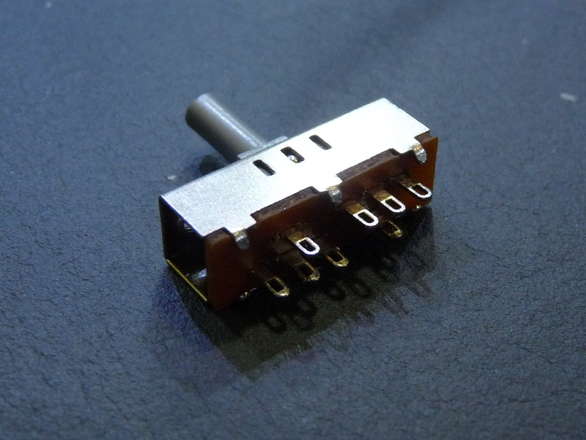

This is a nice little switch for mounting through/behind a panel, with screws going through the panel and just the lever itself coming through.
This switch has 2 poles (2 independant circuits) nd 3 throws (3 positions each circuit can be in).
There are “throws” for both up, down and the center position also so this is a DP3T switch.

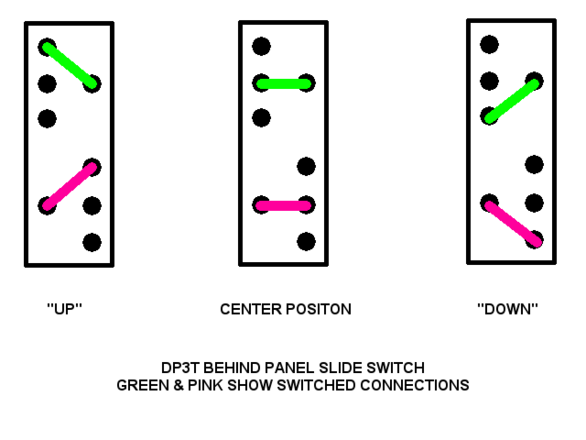

The pinout is shown in the image. Of course you can have the center position be Off just don’t connect to those pins, or whatever, your cake, you bake it.
Screw holes take an M2 screw I think.
Lever length 10mm
Switch body 24mm x 7.5mm wide x 9mm tall not including the legs, 12mm including the legs
Max current - not much, this is for low current switching, you might use it to switch a relay or send a signal, not to switch the main power itself
Max voltage - no idea, I'd guess keep it under 30v.
Not much else to say about it really, it’s quite unusual but also kinda cool and vintage sort of looking, reminds me of 80s boom box mode select switches.
