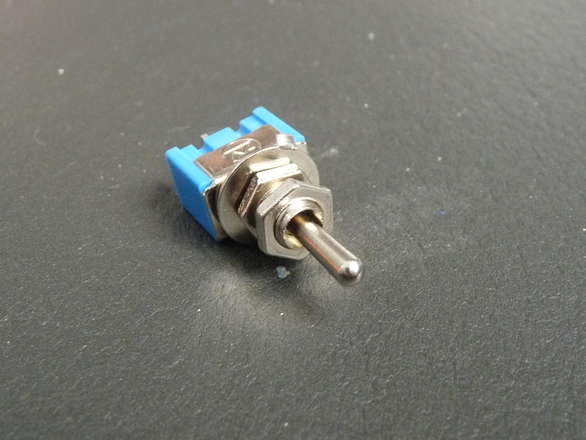

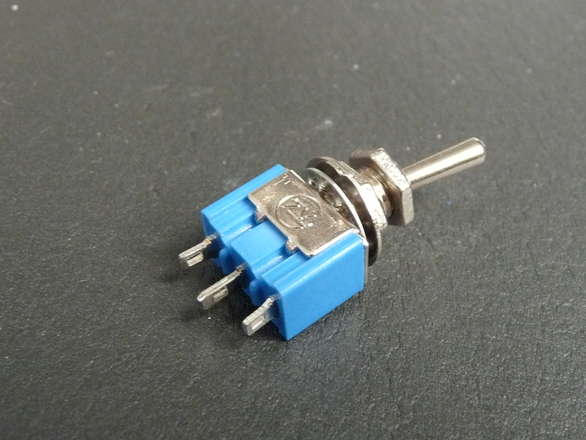

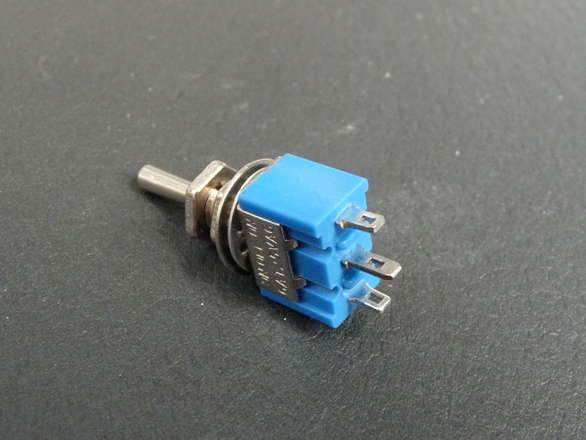

A simple small panel mount toggle switch threaded shaft is 6mm diameter, body is 13mm long, 8mm wide, handle length is 10mm, and total height from bottom of pins to top of handle is approx 33mm
SPDT, aka A/B or On/On, with a center off poition. In other words Center pin is common, "throw" up to connect to top pin, "throw" down to connect to bottom pin, and the center position connects neither.
This switch should only be used for low voltage (eg preferably under 30v) applications.
