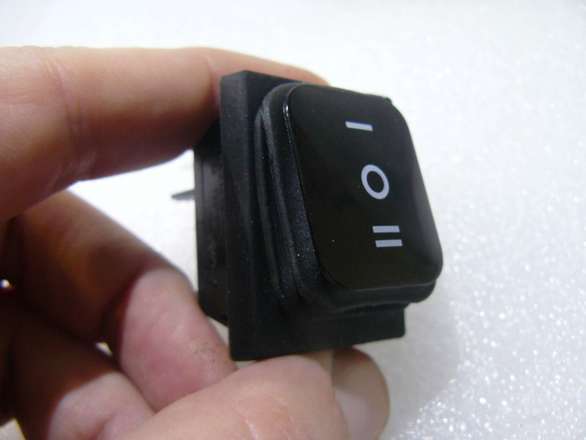

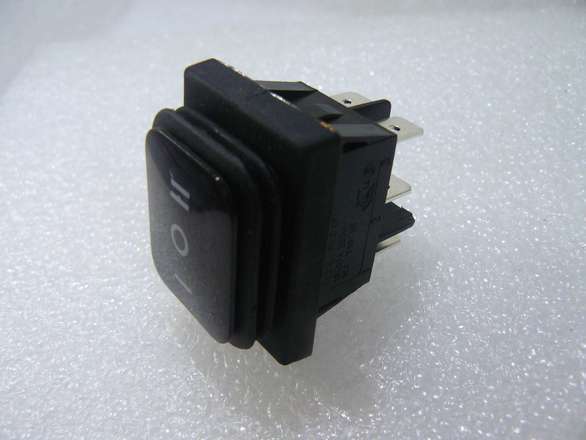

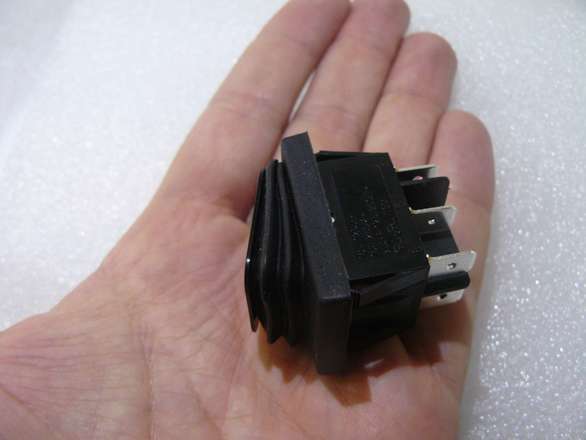

This is a chunky sized switch, I don't have tiny Trump hands just normal size hands, so in the photos, you can see, it's quite big. The bezel measures about 28x38mm.
On-Off-On with two switched circuits (in technical words, DPDT with center off),

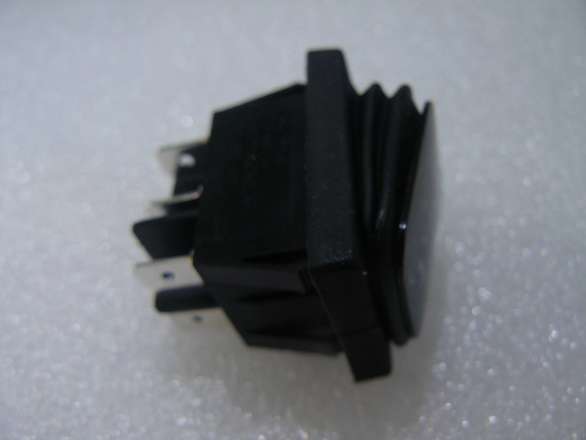

The Chinese supplier sells them as waterproof, but I think splash or weather resistant is a better term myself, think boat, not submarine. The switch has a rubber boot over the, err, switch, the accordion looking bit in the photos, you know what I mean, and the bezel area is part of that rubber boot, so when you push it into the panel the rubber seals against the panel.
It has a really nice feel to the switch action, a good positive snappy switch.
You will want a rectangular hole approx 30mmx22mm

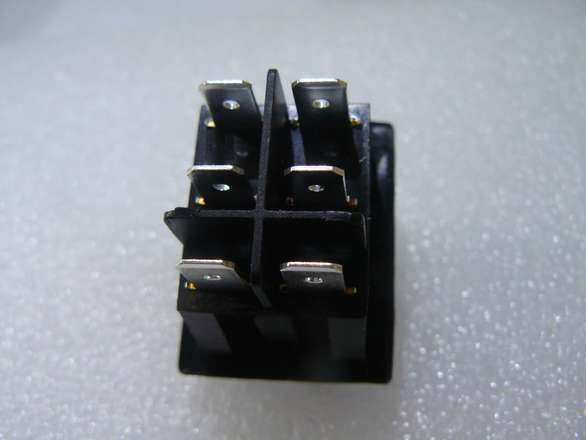

Note that pressing "up" makes the lower pin connect to common, and pressing "down" causes the upper pin to connect to common, don't go soldering it in only to find out you got it reversed.
