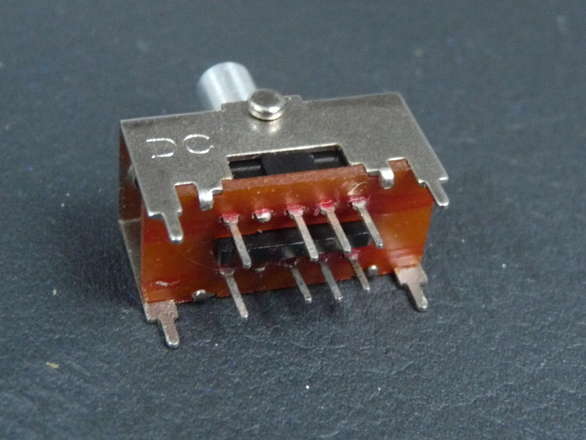

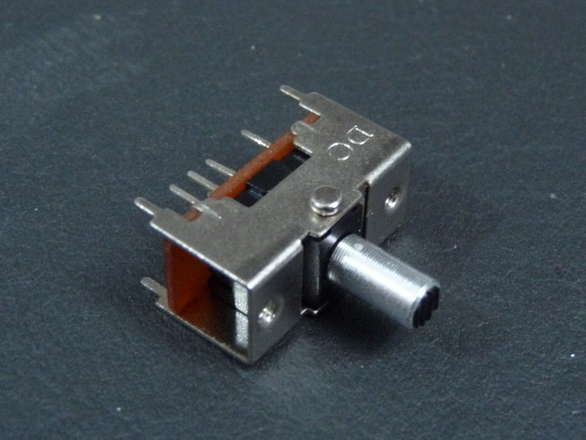

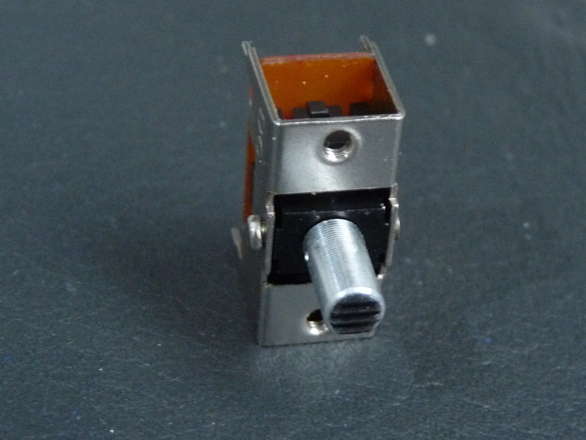

This is a fancy looking switch for mounting through/behind a panel, with screws going through the panel and just the lever itself coming through.
Usually such a switch would be directly soldered onto a PCB, but you can of course solder wires as desired instead.
This is a momentary switch with center neutral position, so you push up, or push down and it returns to center when you let go.

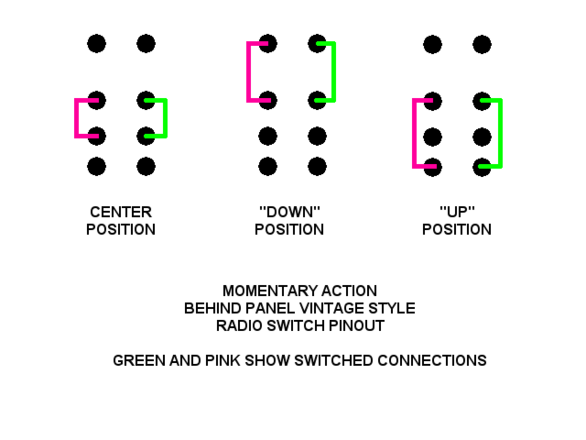

There are “throws” for both up, down and the center position also so this is a DP3T switch. The pinout is shown in the image. Of course you can have the center position be Off just don’t connect to those pins, or whatever, your cake, you bake it.
Screw holes take an M2 screw I think.
Lever length 9mm
Switch body 23mm x 11mm wide x 11mm tall not including the legs, 15mm including the legs
Max current - not much, this is for low current switching, you might use it to switch a relay or send a signal, not to switch the main power itself
Max voltage - no idea, I'd guess keep it under 30v.
Not much else to say about it really, it’s quite unusual but also kinda cool and vintage sort of looking, reminds me of 70s and 80s hi-fi equipent style.
