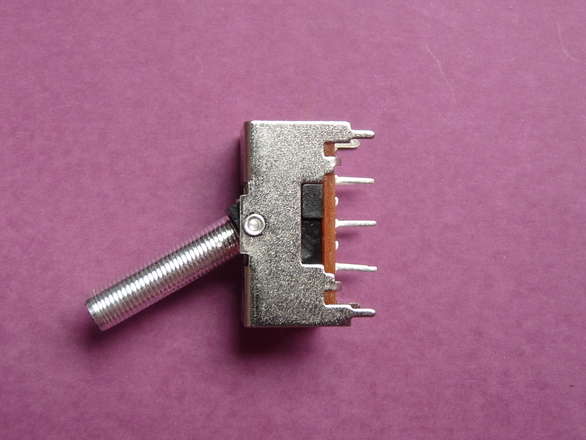

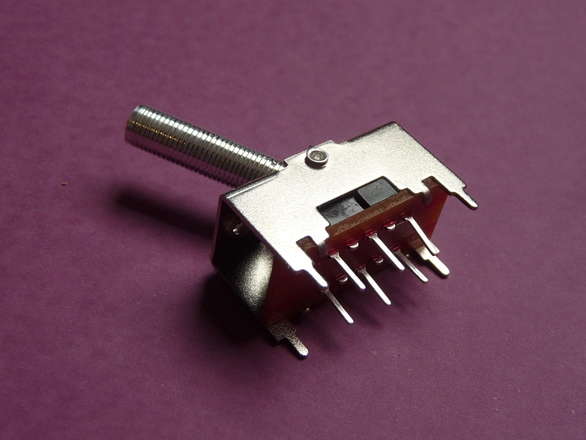

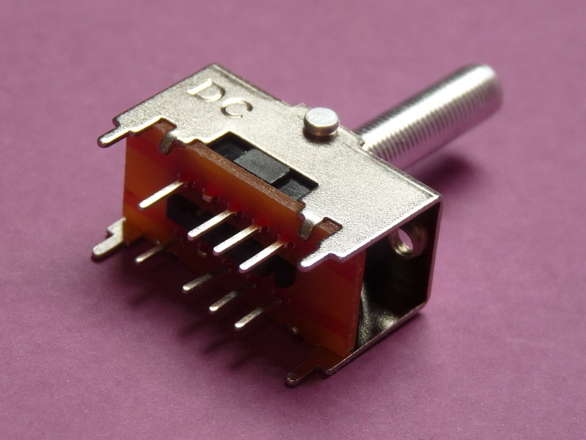

Toggle switches for mounting through/behind a panel, with screws going through the panel and just the lever itself coming through.
The levers on these are 19mm tall, and 5mm diameter.
Usually such a switch would be directly soldered onto a PCB, but you can of course solder wires as desired instead.

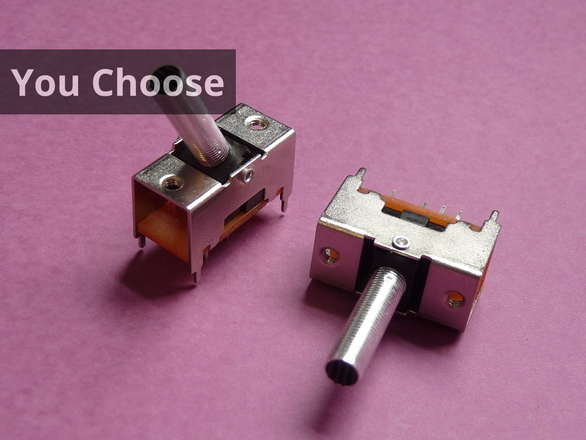

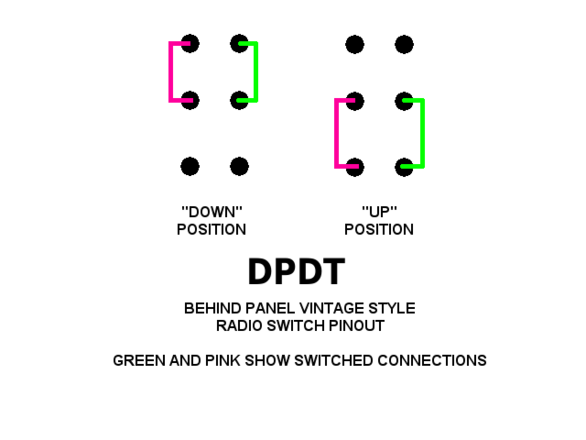

I have both DPDT (A-B) and DP3T (A-B-C), pinouuts are as per image. You must choose which you want

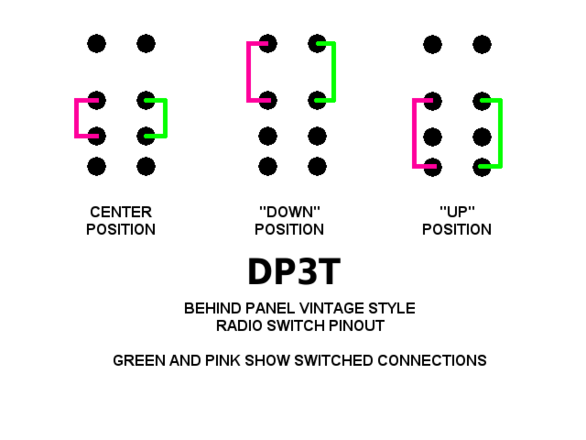

There are “throws” for both up, down and the center position also so this is a DP3T switch. The pinout is shown in the image. Of course you can have the center position be Off just don’t connect to those pins, or whatever, your cake, you bake it.
Lever length 19mm

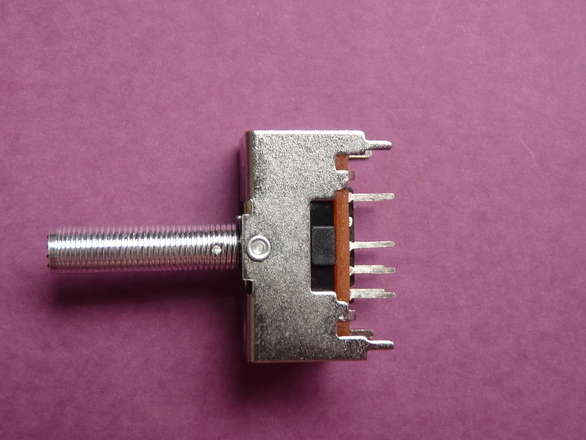

Switch body 23mm x 11mm wide x 11mm tall not including the legs, 15mm including the legs
Max current - not much, this is for low current switching, you might use it to switch a relay or send a signal, not to switch the main power itself
Max voltage - no idea, I'd guess keep it under 30v.
Not much else to say about it really, it’s quite unusual but also kinda cool and vintage sort of looking, reminds me of 70s and 80s hi-fi equipent style.
