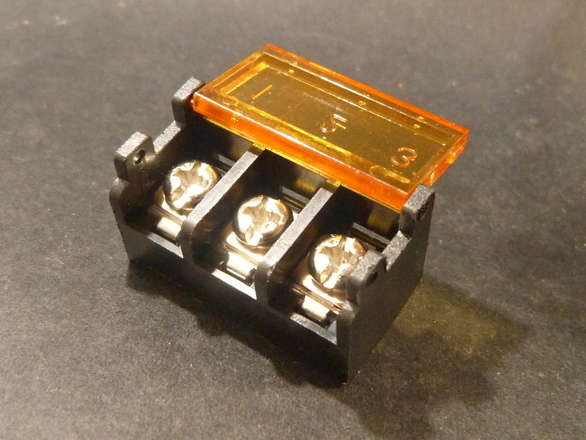

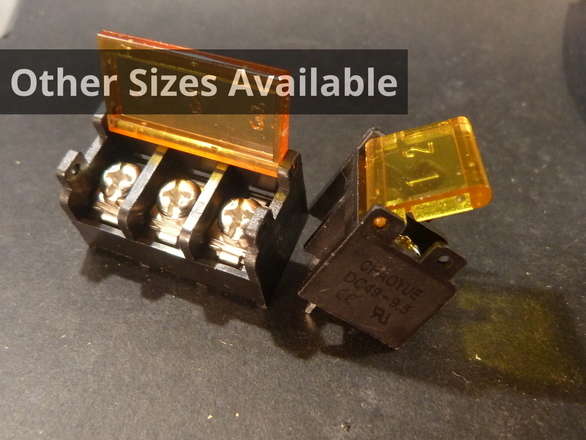

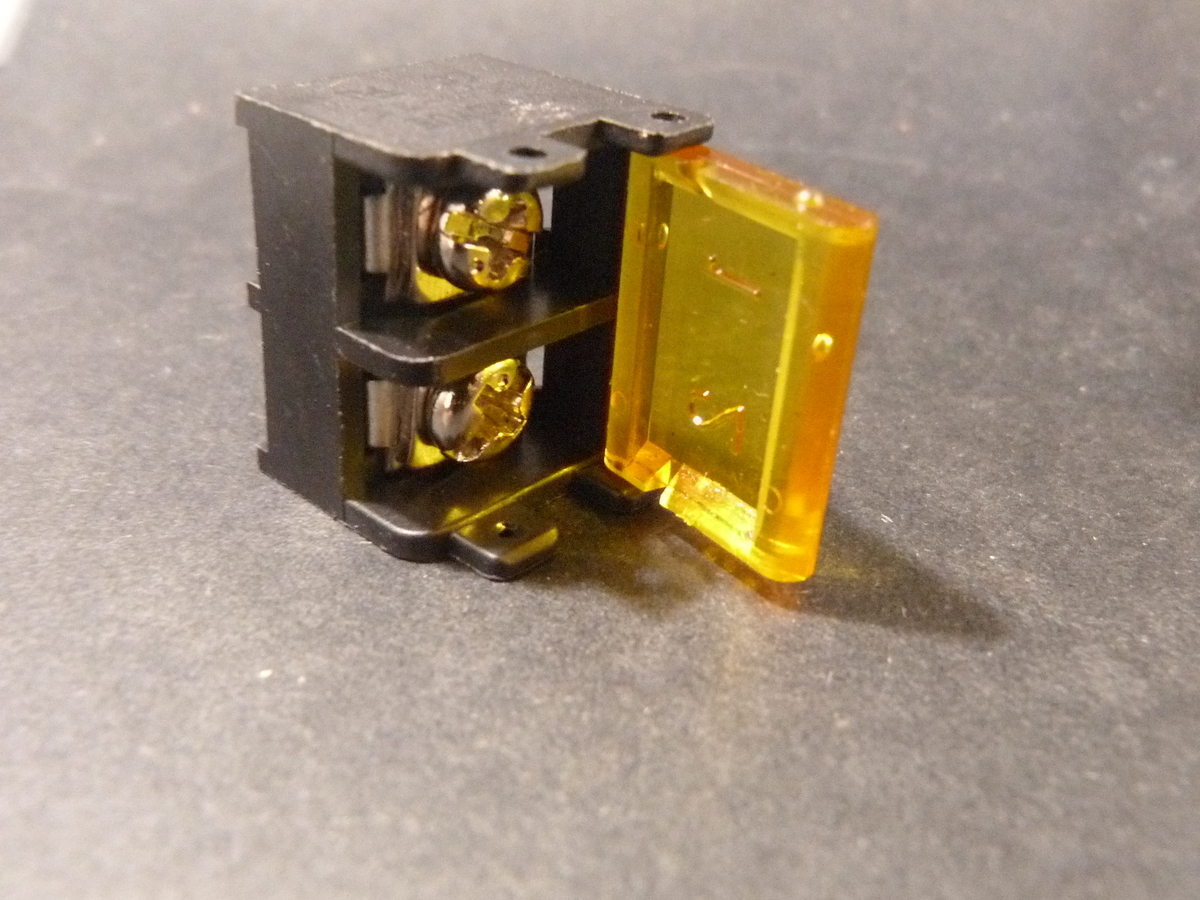

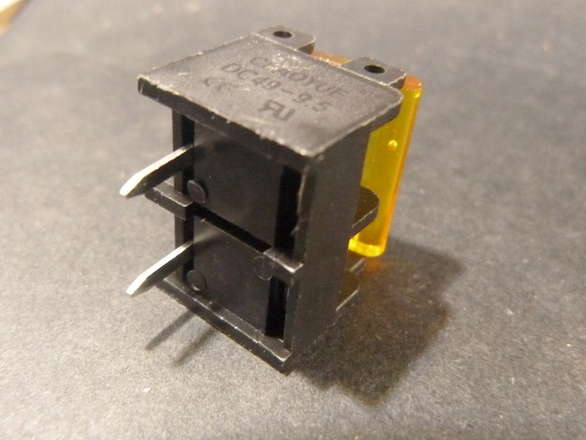

Covered PCB mount barrier terminals in different sizes, you can choose from the below…
Pin pitch is 9.5mm, and the total width measurement is (9.5 * Pins) + 1.5mm
Between barriers is 8mm, and screw is M4 (4mm).
Supposedly rated to 30 Amps, but this is a chinese rating, so, yeah, tread carefully there, I would expect in the best case that only to really be valid if you are using good quality crimped terminals on the wire also.
