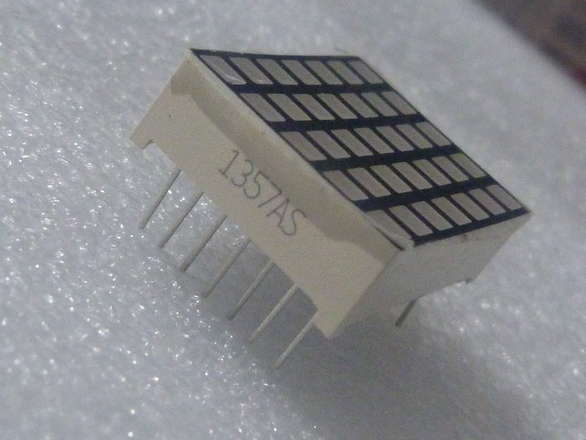

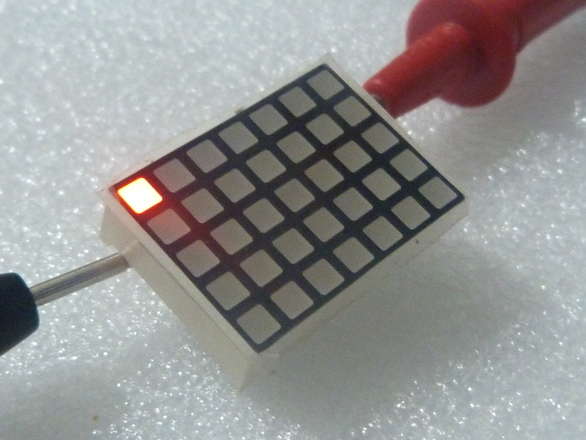

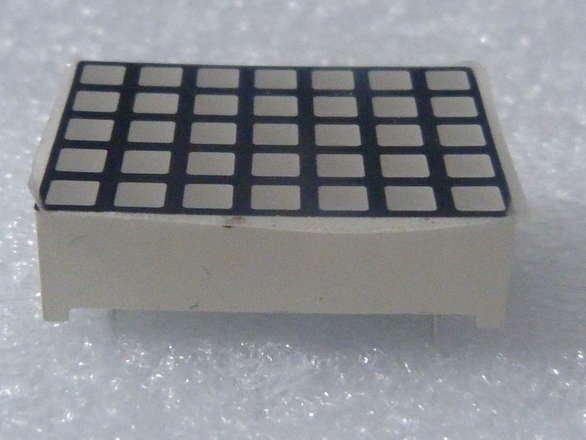

This is a relatively mini 5x7 LED matrix in red.
Measurements are approx 20mm wide, and 29mm tall, 10mm deep.

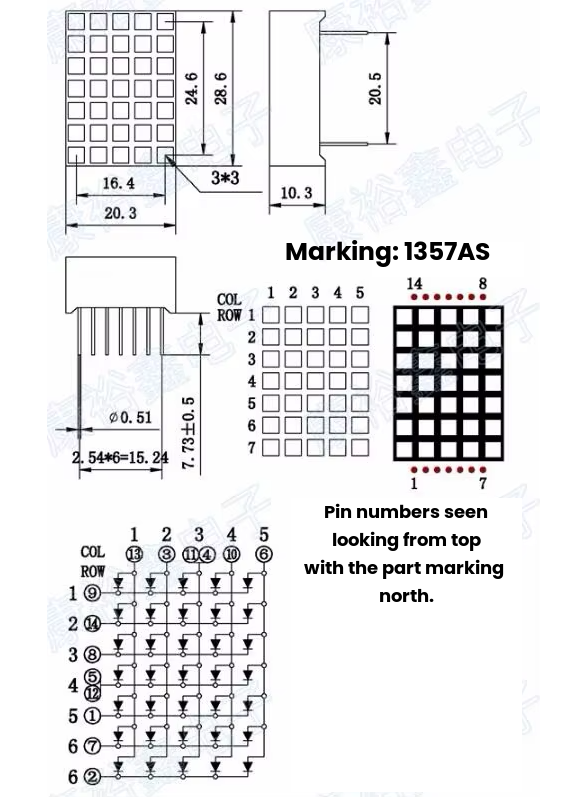

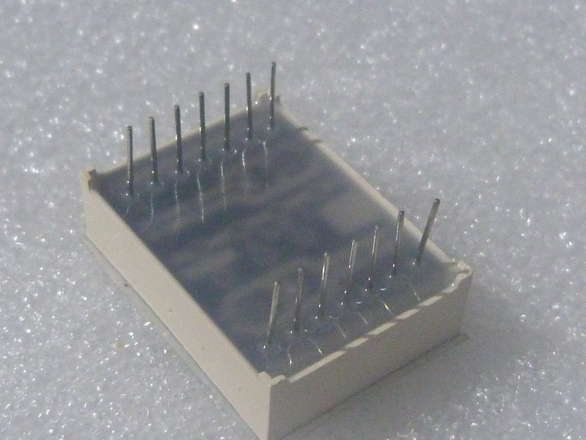

14 pins, see the image for pinout, diagram and more precise measurements.
This display is row-common-cathode, that is each row shares a cathode, and each column shares an anode.
Current should be limited to 20mA maximum per LED.
