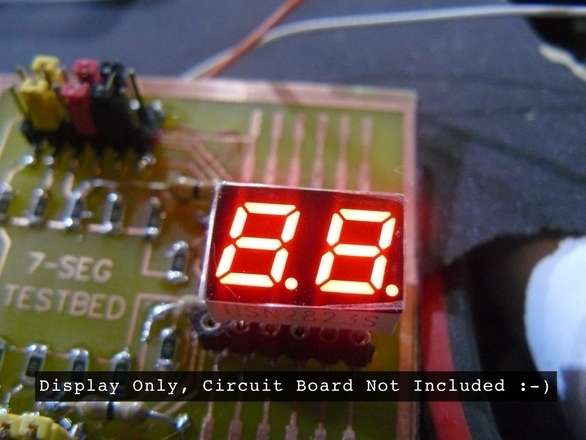

This is a 2 digit seven segment display, and it's very small at approx 1cm high.
Picture shows all lights lit - taking pictures of leds is hard, it looks better, redder, brighter in real life. Test circuit not included )
2 digits, and a decimal point for each digit.
Common cathode - 1 cathode for each digit, and an anode for each segment A through G and the Decimal Point
There are 10 pins, standard 2.54mm spacing.
Looking from the front, on the top row left to right the pins are
F, Cathode 1, B, A, Cathode 2
and bottom row left to right
E, D, C, G, Decimal Point
PS: segment letters are standard, A is the top, then go clockwise around (so B is top right, C is bottom right..), and G is the middle bar.
