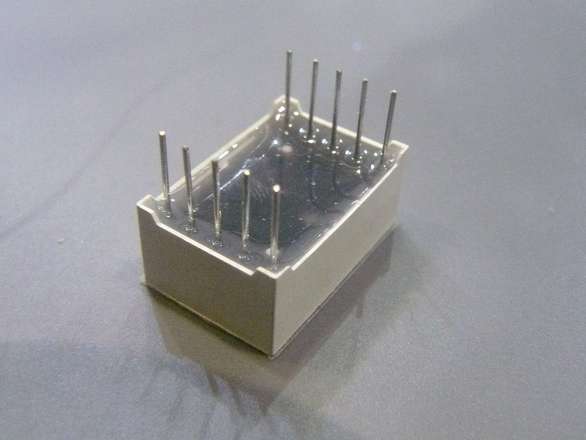

This is a single digit seven segment display, approx 19 mm high, 12.7 mm wide

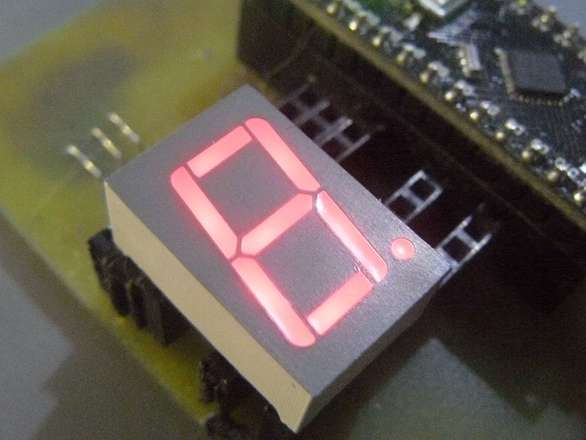

Picture shows all lights lit - taking pictures of leds is hard, it looks better, redder, brighter in real life. Test circuit not included.
1 digit, and a decimal point
Common anode - 1 anode for each digit, and a cathode for each segment A through G and the Decimal Point
There are 10 pins on a 2.54mm grid

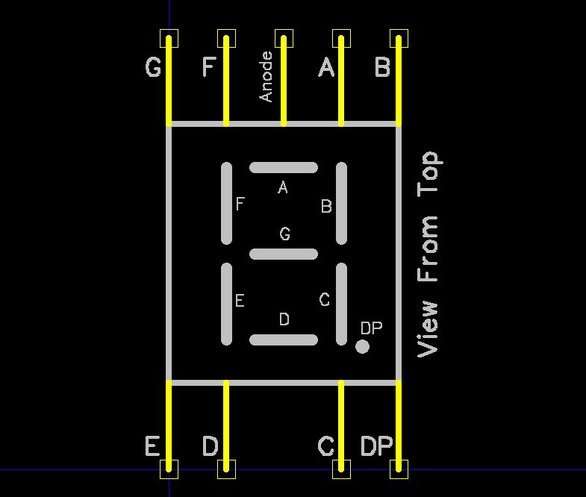

See image for the pinout (but please do test the pinout yourself before designing your PCB, it's always possible I got it wrong!)
Dimensions: block is 19mm high x 12.7mm wide and 8mm thick, digits approx 15mm high
