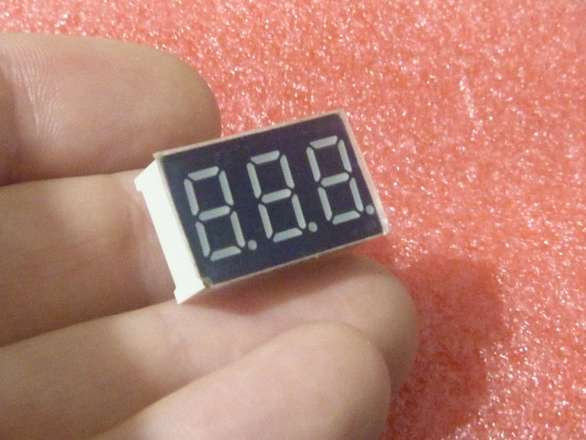

This is a 3 digit seven segment display, and it's very small at approx 1.5cm high.

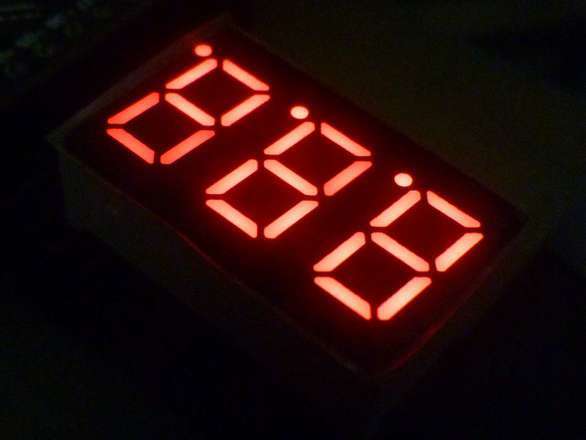

Picture shows all lights lit - taking pictures of leds is hard, it looks better, redder, brighter in real life. Test circuit not included )
3 digits, and a decimal point for each digit.
Common cathode - 1 cathode for each digit, and an anode for each segment A through G and the Decimal Point
There are 11 pins on a 2.54mm grid
Dimensions: block is 14.2mm high x 22.6mm wide and 7.3mm tall, digits approx 9.3mm high
Pinout as viewed from the TOP
Top Left -> Top Right
DIGIT_1, A, F, DIGIT_2, DIGIT_3, B
Bottom Left -> Bottom Right
E, D, DP, C, G
