This is a 6 digit seven segment display, and it's very small at approx 1.5cm high.

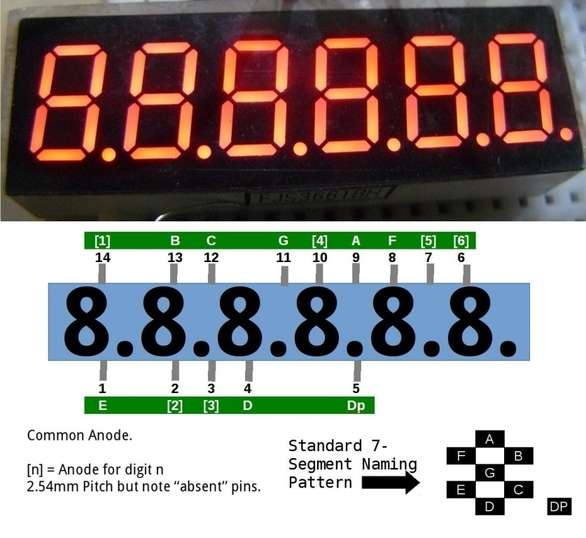

Picture shows all lights lit - taking pictures of leds is hard, it looks better, redder, brighter in real life. Test circuit not included )
6 digits, and a decimal point for each digit.
Common anode - 1 anode for each digit, and a cathode for each segment A through G and the Decimal Point
There are 14 pins on a 2.54mm grid with "absent" pins (no pin at all in some locations, as opposed to non-connected pins).
See image for the pinout (but please do test the pinout yourself before designing your PCB, it's always possible I got it wrong!)
Dimensions: block is 14.2mm high x 44mm wide and 9.25mm deep, digits approx 9.3mm high
