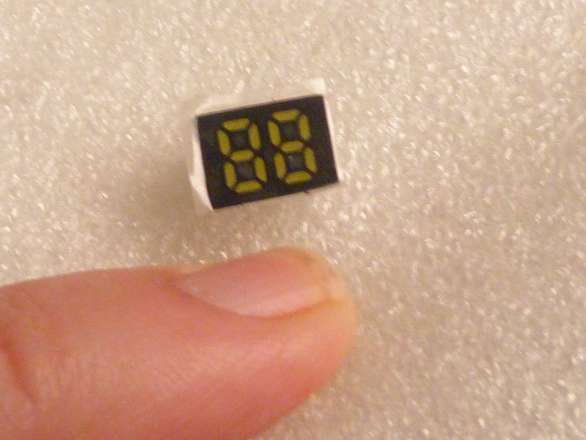

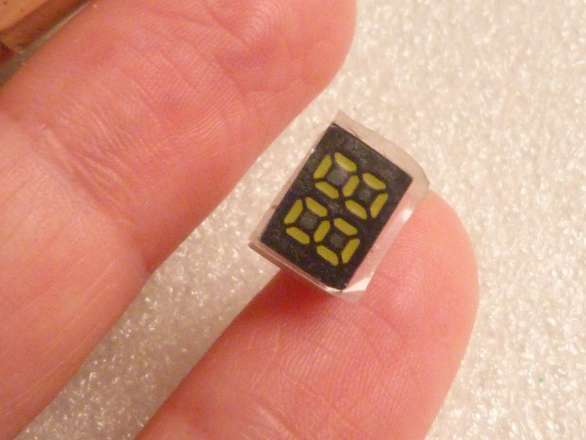

This is an extremely, extremely, minature white 7 segment display.
This display measures just 10mm wide and 7mm high.

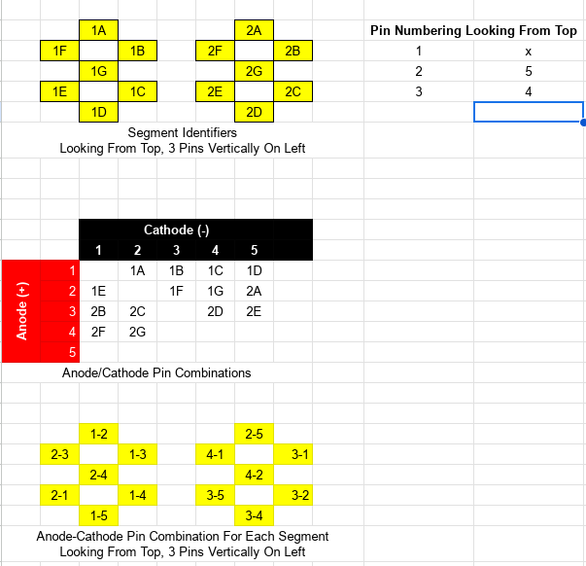

It has 5 pins, which are multiplexed to drive all the segments, see the attached image which describes how each segment is driven, it’s not a simple common cathode or anode arrangement.
Maximum current 20mA, but probably you want to use significantly less than that. Remember to use a current limiting resistor!!
