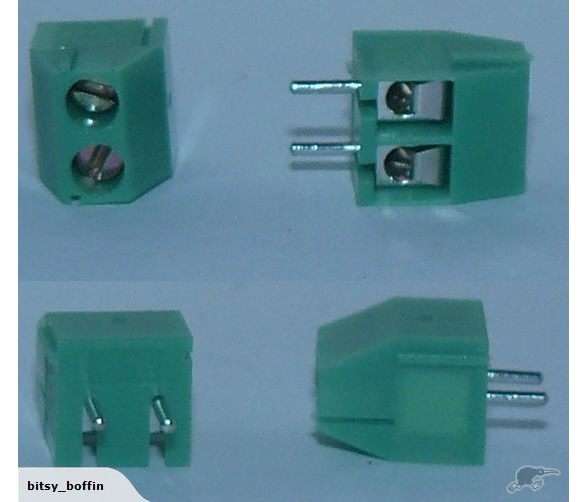

If you’re making your own PCB, these 3.5mm pitch terminals save a lot of space, and less board area means less etch time and less cost!
Sold in a pack of 4 (8 poles total, 2 poles a block), enter the number of packs you would like.
These do still fit into a breadboard spanning across 3 holes if you press it in there with the legs fractionally splayed.
On a PCB you can easily route a trace between the pins, or more than one trace if you're into fine detail.
The have keying grooves/ridges on the ends so you can firmly join them together if you need 4, or 6, or 8….
Supposedly rated to handle 300V, 10A
Height is 8.8mm, the footprint 6.9mm x 7mm
I have other screw terminal sizes also: 283.mytrademe.info
