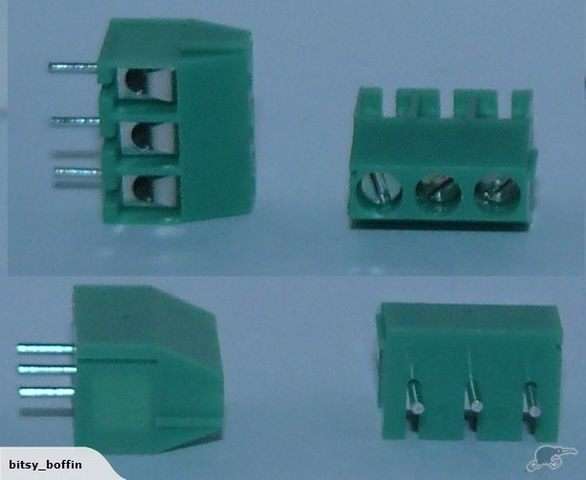

If you’re making your own PCB, these 3.5mm pitch terminals save a lot of space, and less board area means less etch time and less cost!
Sold in a pack of 4 (12 poles total, 3 poles a block).
These 3 polers will JUST fit into a breadboard spanning across 4 holes if you press it in there with the legs fractionally splayed (2 close together, one further away) but I don't really recommend it (the 2 pole ones fit a breadboard better, see other listing).
On a PCB you can easily route a trace between the pins, or more than one trace if you're into fine detail.
They have keying grooves/ridges on the ends so you can firmly join them together if you need 6, or 9, or 12….
Supposedly rated to handle 300V, 10A
Height is 8.8mm, the footprint 6.9mm x 11mm
