12 Button Keypad Matrix 3x4 Membrane Self Adhesive Back

$3.20
Price
$3.20 Each
In Stock
Approx 8
More may be available, please enquire.

Trade Me Logo, Click to View Trade Me Listing Detailsor... on Trade Me

Details

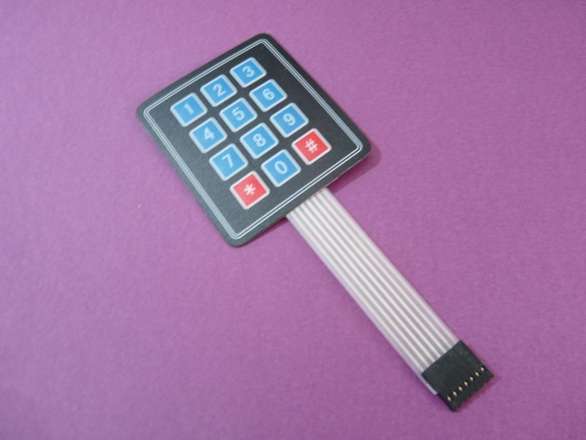

A very common membrane type matrix keypad.  3 across and 4 down for 12 buttons in all.

Dupont type connector will plug onto standard 2.54mm (0.1 inch) PCB headers.

Pinout from the left is Row 1, 2, 3, 4 and then Col 1, 2, 3

Self adhesive backing if you want to use that, peel and stick.

Teaching you how to write Arduino code to poll a keyboard matrix is beyond the scope of this sale, but Google will give you all the help you could desire.  In short, begin with all pins set to INPUT_PULLUP, now for  row #1 pin set it OUTPUT LOW and for each column pin see if digitalRead gives a LOW meaning the button was pressed at Row-Column intersection, or HIGH meaning it wasn’t, put the row #1 pin back to INPUT_PULLUP and move onto row #2 and so forth.

All of our products are shipped from Christchurch, New Zealand using CourierPost for NZ, and Airmail for international.
