USB Type-C Female Socket Breakout Board With Panel Mount

From $1.80
Choose Version
Price
$2.00
In Stock
Approx 7
More may be available, please enquire.

Trade Me Logo, Click to View Trade Me Listing Detailsor... on Trade Me

Price
$1.80
In Stock
Approx 3
More may be available, please enquire.

Trade Me Logo, Click to View Trade Me Listing Detailsor... on Trade Me

Details

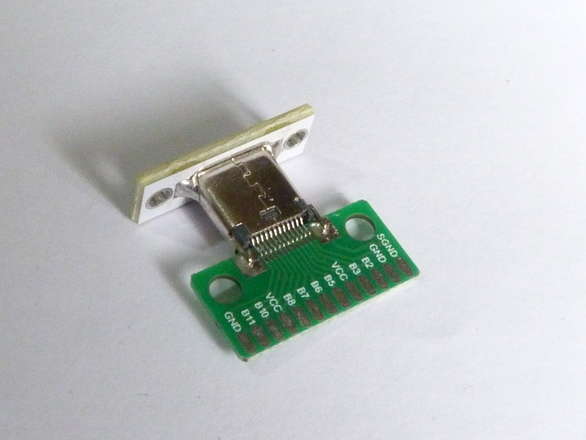

This is a breakbout board with USB Type-C socket (that is, female USB-C).

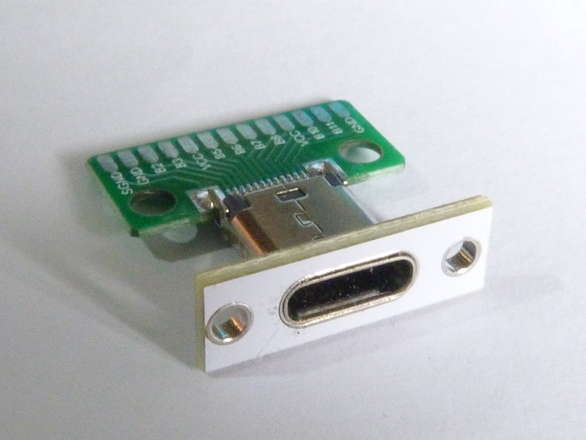

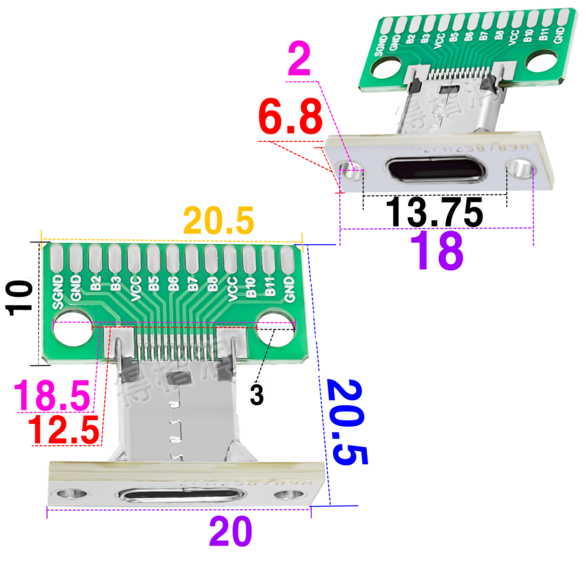

It is attached to a white section of PCB material with 2mm holes for attaching to a panel.

Some of the white bits have a slightly visible batch/ID number on them and are slightly cheaper because of that if you don’t care.

All of the connections are broken out and clearly marked with the silkscreen, the connections are solder pads and have a pitch about 1.5mm by the look of it, you will need to solder wires directly to the pads.

You best be good with some fine soldering to use this board, magnification is probably necessary for those of us with old eyes!


All of our products are shipped from Christchurch, New Zealand using CourierPost for NZ, and Airmail for international.
