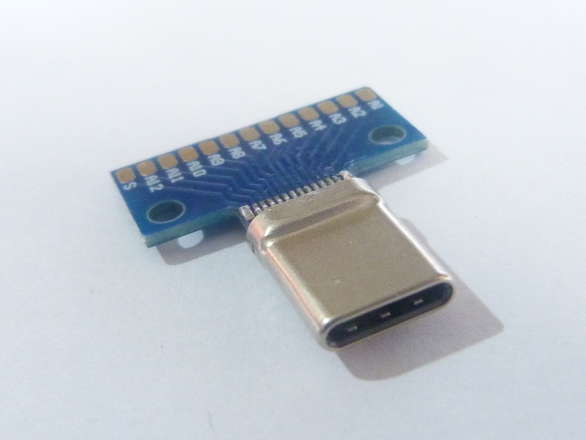

USB Type-C Male Plug Breakout Board

$2.00
Price
$2.00
In Stock
Approx 10
More may be available, please enquire.

Trade Me Logo, Click to View Trade Me Listing Detailsor... on Trade Me

Details

This is a breakbout board with USB Type-C Plug (that is, male USB-C).

All of the connections are broken out and clearly marked with the silkscreen, the connections are solder pads and have a pitch about 1.5mm by the look of it, you will need to solder wires directly to the pads.

The silkscreen markings are the standard A1, A2… B1, B2… for USB pinouts as per the Wikipedia article here

You best be good with some fine soldering to use this board, magnification is probably necessary for those of us with old eyes!
