Low Voltage Super Flexible LED Neon-Like Noodle Filament 130mm - You Choose

Details

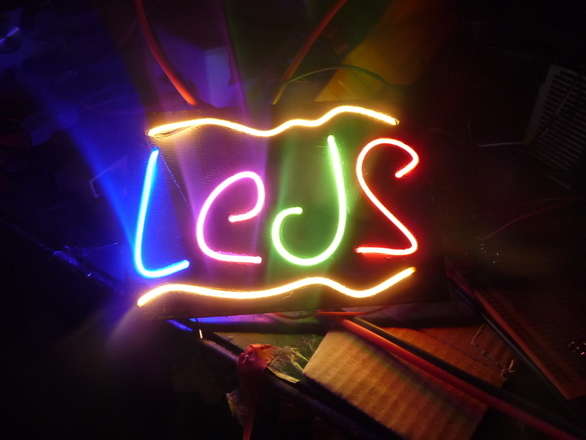

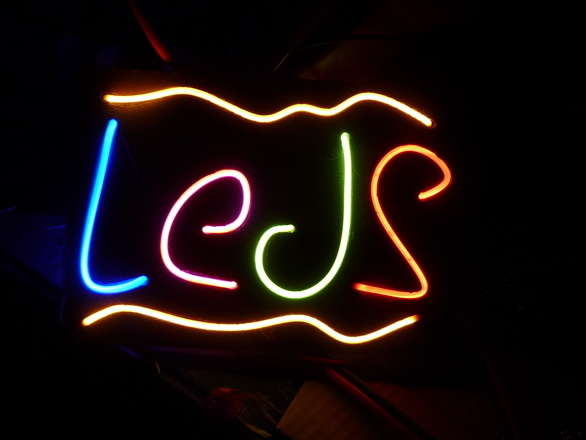

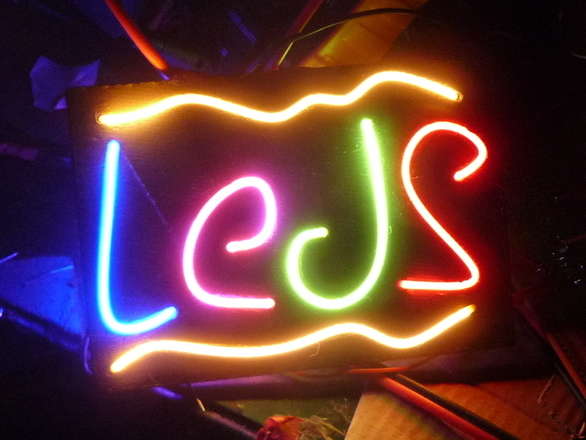

Noodle is the best way I can think to describe these LED strips, they are super flexible and have an appearance like tiny neon.

The lit portion of each strip is about 120mm (12cm) long.  The filament is about 2mm diameter.

You choose which one you want, each “item” you buy is one strip…

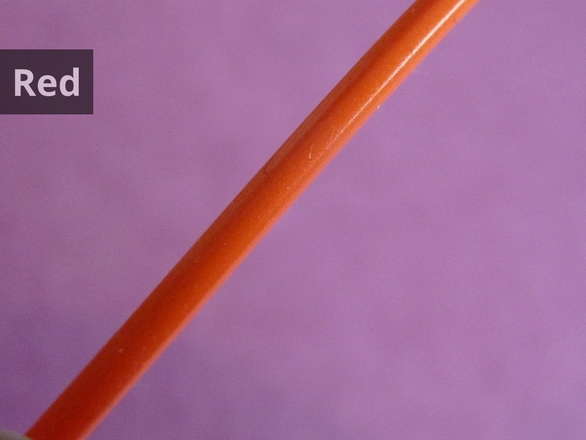

• Red (Vfwd 2.8v at 80mA) - Currently Out Of Stock; or

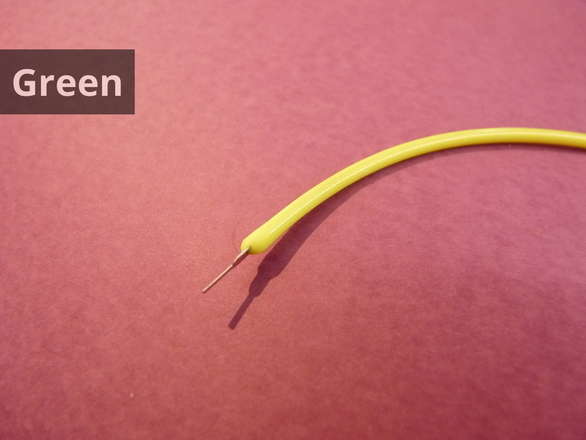

• Green (Vfwd 2.8v at 80mA) - Currently Out Of Stock; or

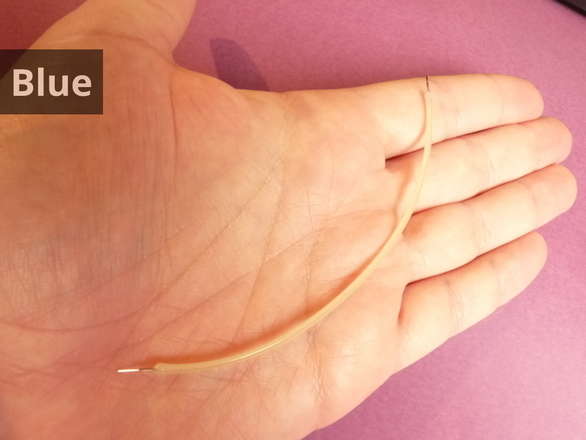

• Blue (Vfwd 3v at 80mA) - Currently Out Of Stock; or

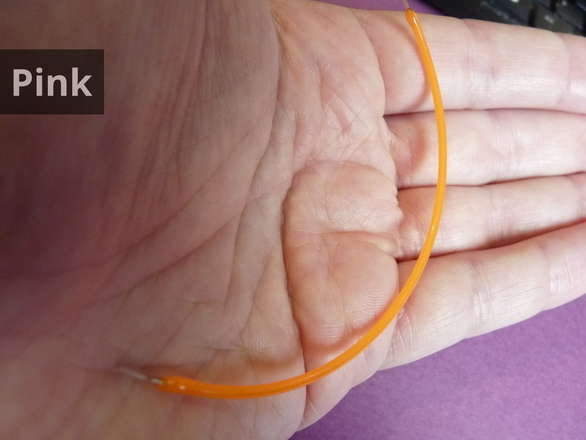

• Pink (Vfwd 2.8v at 80mA) - Currently Out Of Stock; or

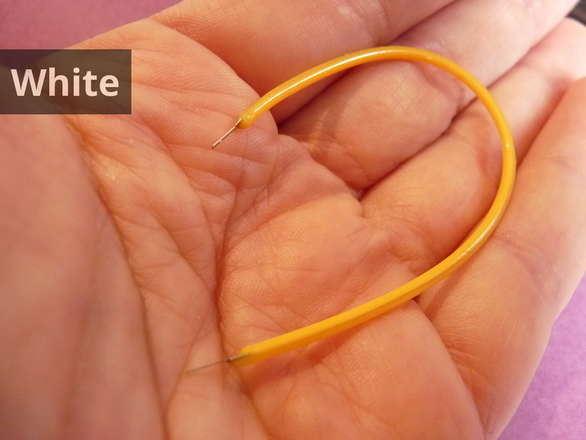

• Warm White 2200k (Vfwd 2.74v at 80mA) - Currently Out Of Stock; or
• Warm White 2100k (Vfwd 2.8v at 80mA) - Currently Out Of Stock

No special “driver” is required, all you need is a suitable resistor for each strip, using a 5v supply I would use a 66 ohm resistor or 33 ohm resistor if you needed a bit more brightness.

Each strip should be run at about 80mA max.

Important Notes

• You can not cut these strips shorter
• There are no resistors in the strips themselves, use an appropriate external resistor(s)
• The “off” colour of each strip is not what the “on” colour is

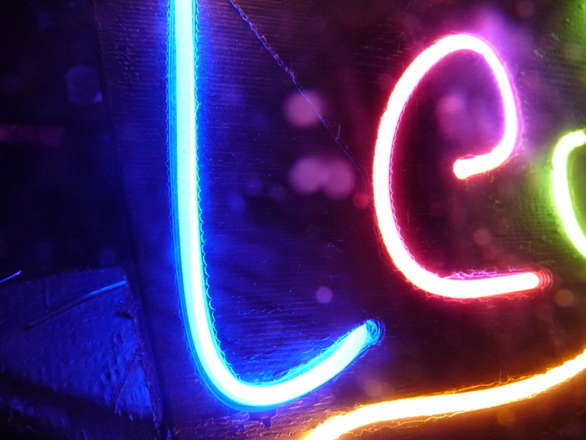

• The strip glows fairly evenly around but there is a better “front side” and “back side”

The video below from Big Clive shows similar but longer led filament, note that his filament has a noticable dimming in the middle, mine doesn’t (probably because it’s shorter).
