This is a buck (step down, input voltage higher than output voltage) mode LED driver with dimming feature, turn the potentiometer to vary between about 100mA to 850mA, can be used to drive a 10W led from an input voltage of 12v to 42v (or higher, see below), great for powering a 10W led from a car battery at the campsite (but be careful you don't drain your starter battery flat !!)
Absolute maximum input voltage is supposedly 80v DC, however I have only tested to about 60v, and I found that if you go higher than 42v then the maxmium current creeps up somewhat over an Amp, so in short, I recommend between 12 to 42v input.
The driver does run pretty hot, typically creeping up around the 70-80 degrees mark on the PCB going full blast, the potentiometer knob surprisingly doesn’t get very hot though. In short, I wouldn’t put this in a tight PLA plastic enclosure for example or it’ll go all saggy, best to have some airflow around it.
This is a DC powered device, not AC, THIS IS NOT A MAINS POWER DEVICE, low voltage only.
This is buck mode - input voltage must be higher than the total forward voltage of the led – for a 10W led 3x3 type LED such as I sell, an input of 12v+ works.

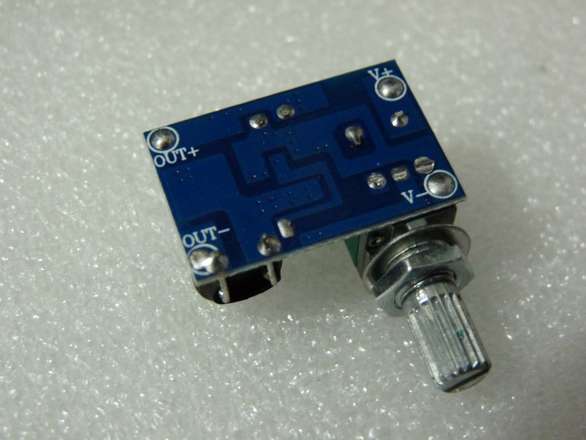

The bottom of the PCB has the in/out and polarities marked, solder pads to attach your wires on the bottom.
