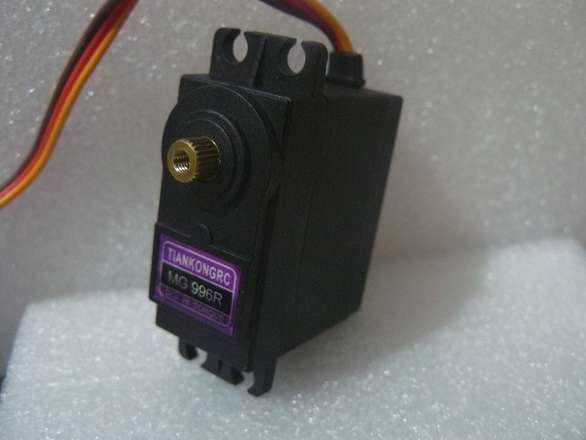

"Standard" MG996R servo, exact brand may vary from pictured there are a multitude of brands, if you care better ask first.

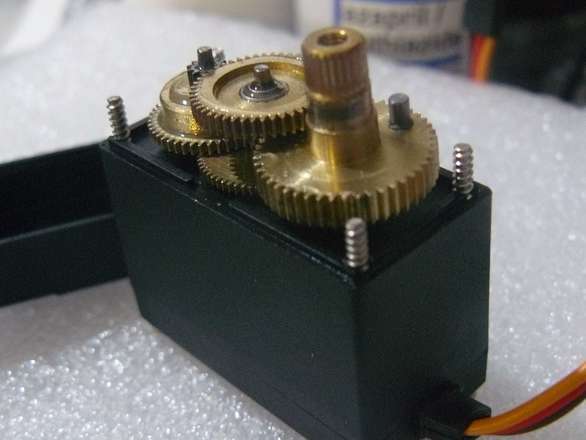

All metal gear. As is typical for cheap MG996R (even if the seller would claim otherwise!) these have bushings rather than bearings, I also sell bearings you can use to easily swap the bushings out if you so desire.
Dimensions including the mounting arms are about 54mm long, 46mm high (inc gear) and 20mm wide.

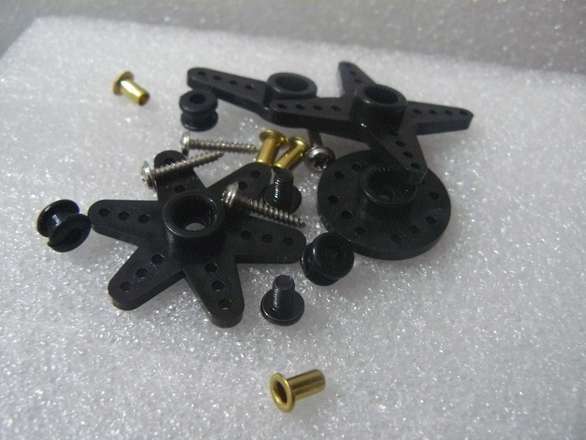

Comes with pack of various arms and stuff.
Timing pulse may vary manufacturer to manufacturer, servo to servo. Around 500uS to about 2400uS is usually in the ball-park for the MG996R (but some are about 800uS to 2200uS). It’s always a good idea to “calibrate” your system to the servo if you need to have ex
I test all my servos briefly before shipping for basic functionality (one extent to the other), if you have bought servos from China you will probably have experienced dead-on-arrival ones before, hopefully my testing avoids that problem for you.
IMPORTANT NOTICE - using random cheap Chinese servos like these (or indeed any components) in devices that could be lost or destroyed if it fails is always a risk, one which you must be aware of and decide if it is acceptable. If you have a faulty servo I’m happy to sort that out, if you have a smoking drone shaped crater, well… not much I can do there.
All of our products are shipped from Christchurch, New Zealand using CourierPost for NZ, and Airmail for international.
