This product information has been archived and is not currently planned for restocking.
Please feel free to contact us to discuss this product, we can possibly suggest an alternative or see if it can be sourced specially for you.
See SG90 Pro instead, same size and performance, more robust!

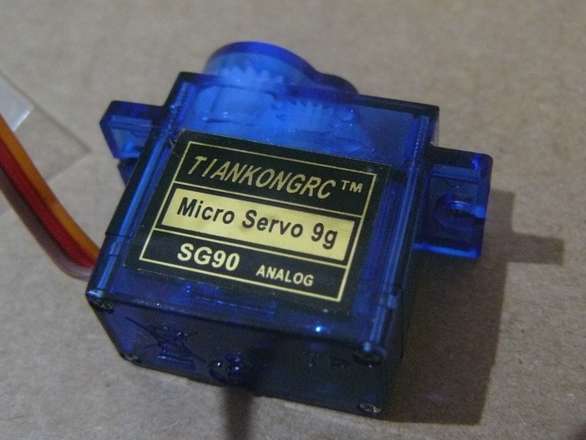

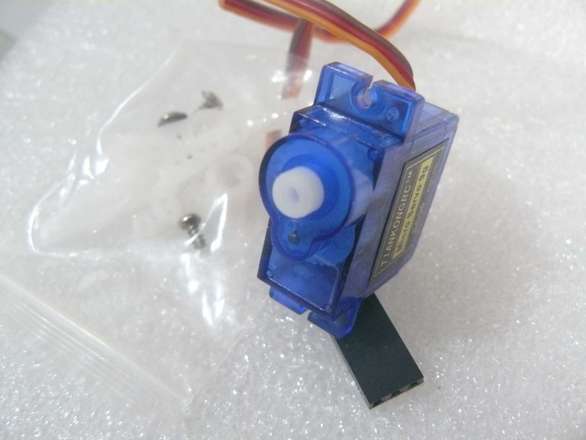

"Standard" SG90 servo, exact brand may vary from pictured there are a multitude of brands, if you care better ask first.
Dimensions including the mounting arms are about 32mm long, 30mm high and 13mm wide.

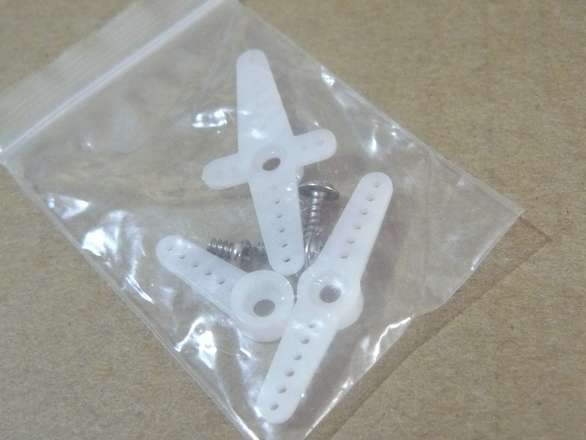

Comes with typical pack of 3 arms.
Timing (pulse width) on the SG90 is about 500uS to about 2400uS from one extent to the other, not quite 180 degrees in practice.
I test all my servos briefly before shipping for basic functionality (one extent to the other), if you have bought servos from China you will probably have experienced dead-on-arrival ones before, hopefully my testing avoids that problem for you.
IMPORTANT NOTICE - using random cheap Chinese servos like these (or indeed any components) in devices that could be lost or destroyed if it fails is always a risk, one which you must be aware of and decide if it is acceptable. If you have a faulty servo I’m happy to sort that out, if you have a smoking drone shaped crater, well… not much I can do there.
All of our products are shipped from Christchurch, New Zealand using CourierPost for NZ, and Airmail for international.
