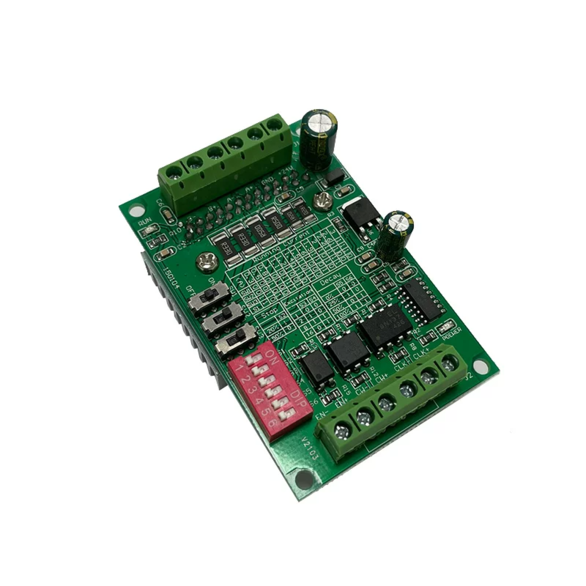

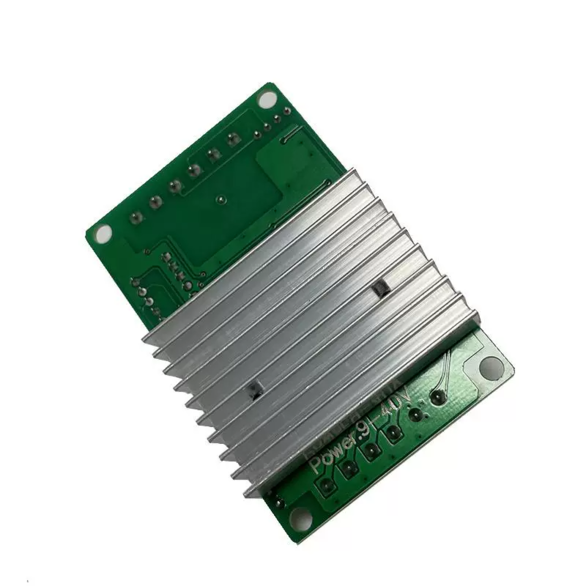

The TB6560 Stepper Motor Driver, somewhat heavier duty driver compared to the small A4988 StepStick and is suited to NEMA17 and NEMA23 stepper motors. Includes a heatsink pre-attached and switches for configuration.
There are lots of sites out there on the internet as to the use of these very common drivers, here is a good tutorial with lots of information (pdf for posterity)
Maximum continuous output current: 3A
Working voltage: 10V – 35V (24V recommended)
Microstepping: Whole step, 1/2 Step, 1/8 Step, 1/16 Step
Protections from under voltage, over tempoerature, over current
Configurable current limits from 0.3A to 3A, configurable holding current of 20% or 50%.
