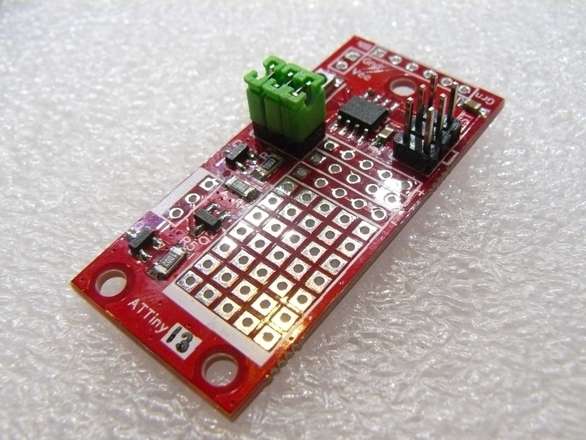

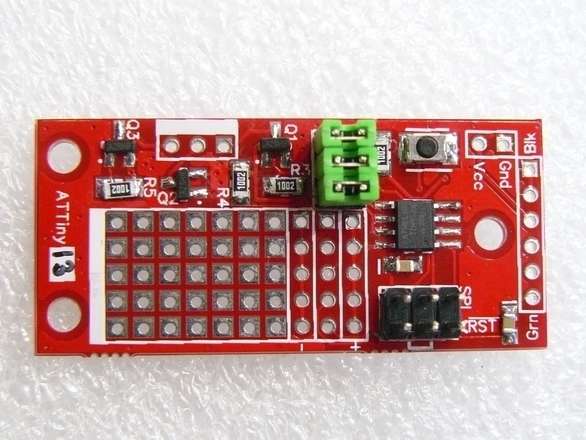

This is a handy prototyping module for the ATtiny13 Microcontroller.
Ready for use with the Arduino IDE if you use my DIY ATtiny system which you can get here: DIY ATtiny
This module which is hand assembled by yours truly, includes the ATtiny13 8 Bit AVR Microcontroller with 1024 Bytes of Flash and 64 Bytes of RAM.

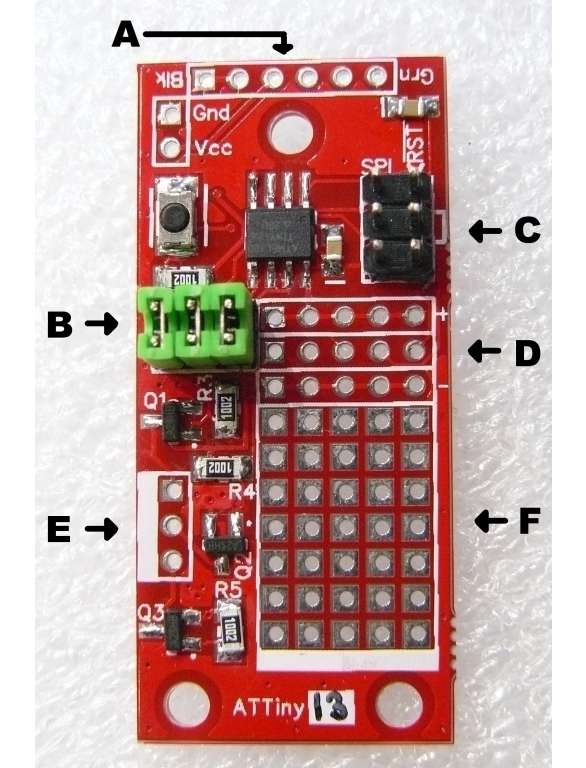

An unpopulated header ready for a CP2102 if you need to do serial communications (marked A in image).
A populated SPI header for programming using a 6 pin programming plug (marked C in image).
A general purpose prototyping pad area with the pads in each column connected by cuttable traces on the back of the board (marked F in image).
Three N Channel Mosfets with their drains connected to pads (marked E in image) and their bases connected to Arduino pins 0, 1 and 2 (PB0..2 AVR native).
Three jumpers to allow you to disconnect Arduino pins 0,1,2 (PB0..2) from the pads and fets if you need to do so while you are programming.
Even though the ATtiny13 is very small, you can still put them to useful work even using the Arduino IDE, especially with my DIY ATtiny system which has had a number of optimisations.
To program an ATtiny13 you will need an ISP Programmer, check my listings for the USBAsp programmer.
To do any serial communication, you will need a USB to UART adaptor, check my listings for the CP2102 adaptor.
More Information Hardware: sparks.gogo.co.nz
More Information Software: DIY ATtiny
