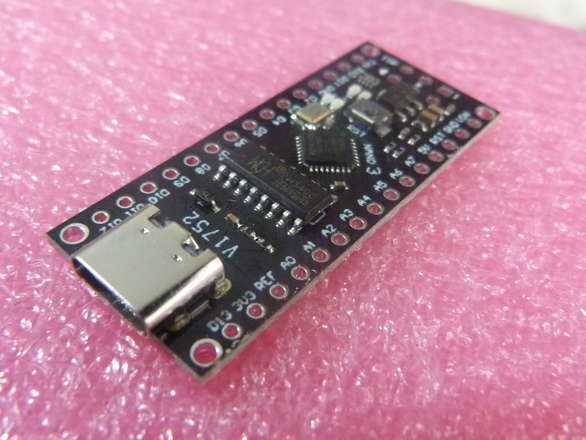

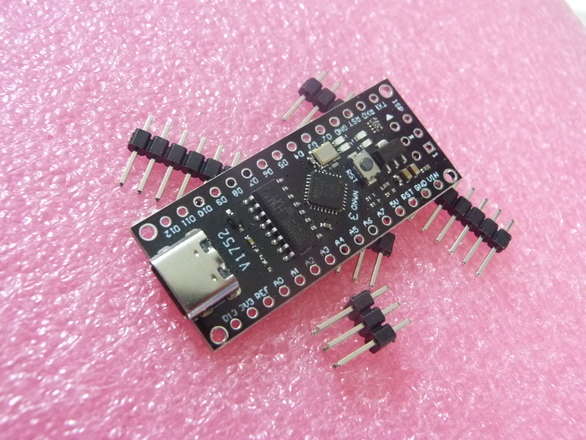

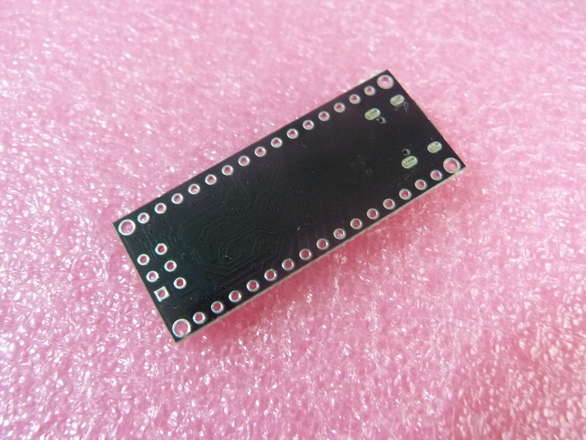

This is an Arduino Development Environment Compatible Nano, with an ATMega 328P (5v, 16Mhz).
The Nano is a teency weency micro controller board, barely larger than a DIP chip.
USB connectivity over a Type C connector is provided by the CH340, drivers available for Windows, Mac and Linux.
Once you have the drivers installed simply select "Arduino Nano" from the Boards menu in the Arduino IDE amd the appropriate Port.
All the usual Arduino features are there, including the extra A6 and A7 Analog Input pins, leds are present on TX, RX, Power, and of course the standard user controllable LED.
This Nano is completely compatible with Arduino IDE, perfect for hard wiring in to your project, at this price just leave it there for posterity!
For information about Arduino and to download the Arduino development software see arduino.cc
Improved USB-C Compatability
This black Nano includes 5.1k resistors that USB Type-C (USB-C) needs to ensure that a Type-C to Type-C cable works correctly (Type-A to Type-C doesn’t need them, but Type-C to Type-C does).
Many other nanos (including the blue ones I also sell) do not include these resistors, so their compatability with Type-C to Type-C cables is less.
