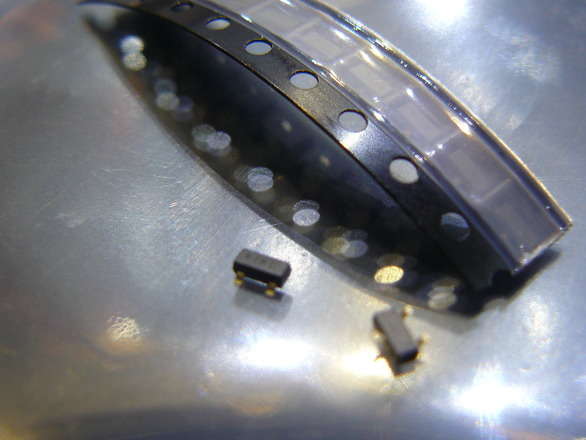

This listing is for a strip/pack of 10 Surface Mount Transistors or Mosfets, in SOT-23 package. Each "item" you buy is 10 transistors/mosfets.
I have the following types available, you must tell me which type you want, all the same type in each strip/pack of 10 devices, no mixed strips.
Details given here are very brief, I will leave you to google datasheets, current ratings especially will typically be "best case" on appropriately large copper/pcb substrate area and type.
BJT
---
# MMBT2907A, PNP, 600mA, 250mW, hfe 200 at 100mA
# MMBT2222A, NPN, 600mA, 250mW, hfe 200 at 100mA
# MMBT3906, PNP, 200mA, 250mW, hfe 200 at 10mA
# MMBT3904, NPN, 200mA, 250mW, 200 at 10mA
# SS8050LT1, NPN, 1500mA, 300mW, hfe 100 at 600mA
# SS8550LT1, PNP, 500mA, 200mW, hfe 100 at 600mA
FET
---
# 2N7002, N Channel, 115mA, 200mW, RDSon 2.4R at 5 Vgs
# AP2305AGN/GN, P Channel, 3A, 1.3W, RDSon 80mR (AGN) 65mR (GN at 4.5 Vgs, 150mR (AGN) 100mR (GN) at 2.5Vgs.
# Si2302DS, N Channel, 2A, 830mW, RDSon 80mR at 4.5Vgs, 115mR at 2.5Vgs
# IRLML2502TRPBF, N Channel, 4A, 1.25W, RDSon 45mR at 4.5Vgs, 80mR at 2.5Vgs
# AO3405, P Channel, 2.6A, 1.4W, RDSon 180mR at 4.5 Vgs, 130mR at 10Vgs
# AO3407, P Channel, 4.3A, 1.4W, RDSon 78mR at 4.5 Vgs, 48mR at 10Vgs
# NP3400MR, N Channel, 5.8A, 1.4W, RDSon 28mR at 2.5vgs, 22mR at 4.5Vgs
These parts are sourced from the usual no-name chinese vendors, exact manufacturer/specifications can not be relied upon, so yeah, don't use no-name chinese parts in critical applications, for hobbiests, no problem!
SOT-23 is easy to solder by hand, just tin one pad, I usually use the "top" pin, tack that down, and then solder the other two.
