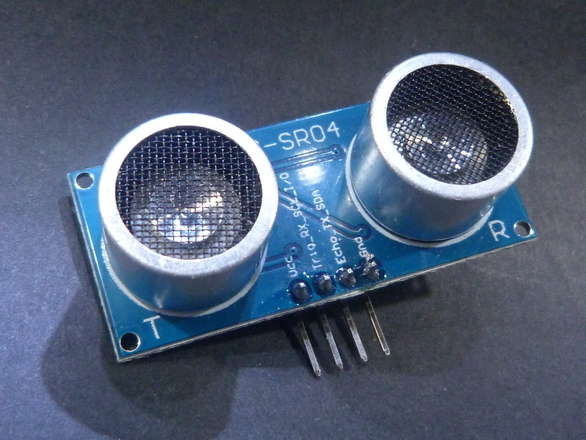

This is an Ultrasonic Distance Measuring Module, compatible and the same dimensions as the classic HC-SR04

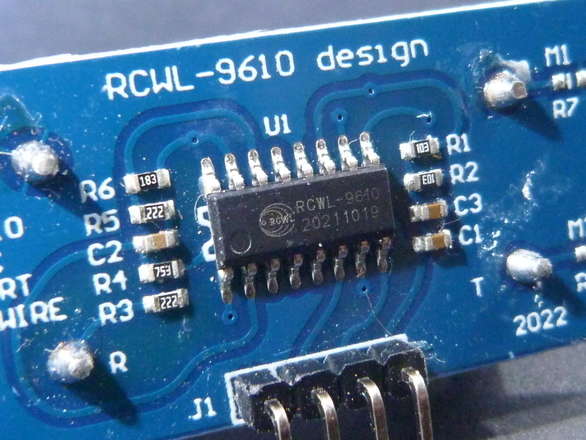

This new version for 2022 is based off the RCWL-9610 chip and supports a supply voltage from 3 to 5v but otherwise should be a drop-in replacement for the old version.

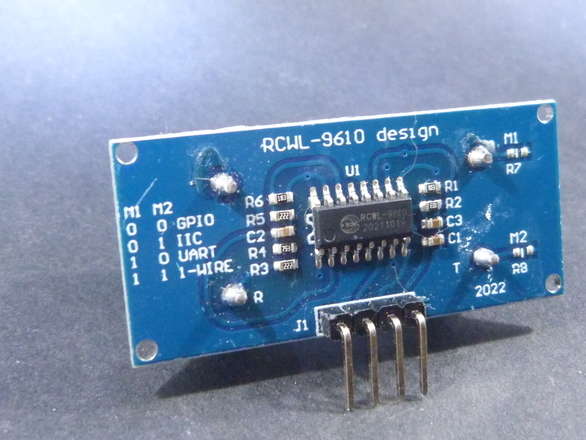

The 2022 version supports these 3 different protocols…
It is supposed to support 1-Wire as well, but I didn’t have any luck with that.
Here is a zip file with Arduino examples for this RCWL-9610 module
The default GPIO mode is recommended and works just the same as the HC-SR04 module, so you can use it with standard Arduino Ultrasonic Module libraries for the HC-SR04
Here's an Instructable and a more in-depth guide (pdf version) if you need more details.
Super easy, super cheap. I have briefly tested each one to ensure it's functioning.
Here is a zip file containing the original chinese RCWL-9610 Datasheet and Arduino examples (includes the 1-Wire mode example which I couldn’t get any joy out of).
