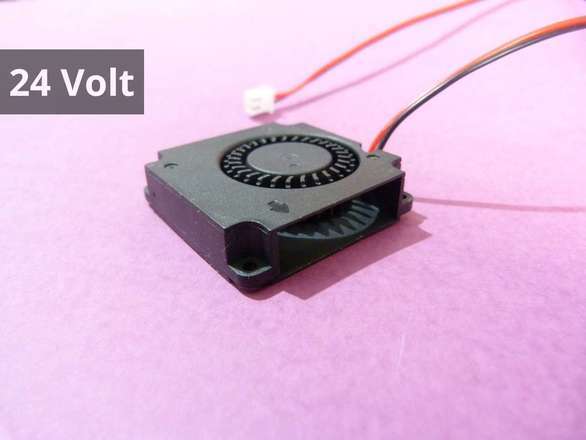

This is a blower fan, also known as a centrifugal fan and sometimes squirrel cage fan.
This is a 24v 4010 (40mm x 40mm x 10mm thick) fan, which is I believe the size that the Crealty printers typically use for the part cooling fan(s) (at least the Ender 3, I think the Ender 5 as well, I don’t know about other models, probably) – but check your printer’s fan size and specification before buying.
24 Volts DC, current rating around 160-200mA but may vary batch to batch.

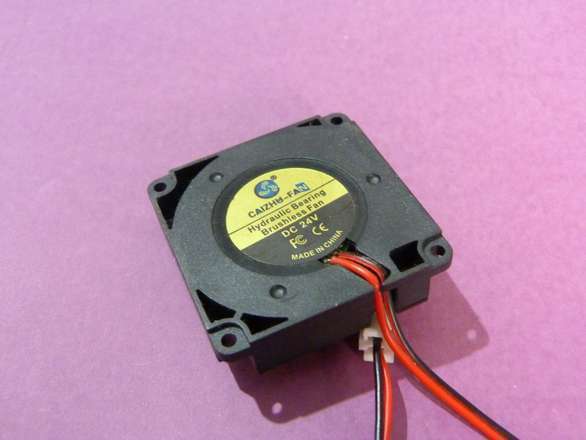

Brand may vary from that shown.
Connector (if any) may vary batch to batch, just chop it off and solder to your own wires/crimp on a new connector as suits your needs.
Measures approx 40mm wide, 40mm high, and 10mm thick.
The outlet is about 27mm x 8mm measured on the inside.
The mounting holes are 2mm diameter and spaced 35mm apart.
