Warning! This is not for sticking a heatsink onto your computer CPU! Now read on.

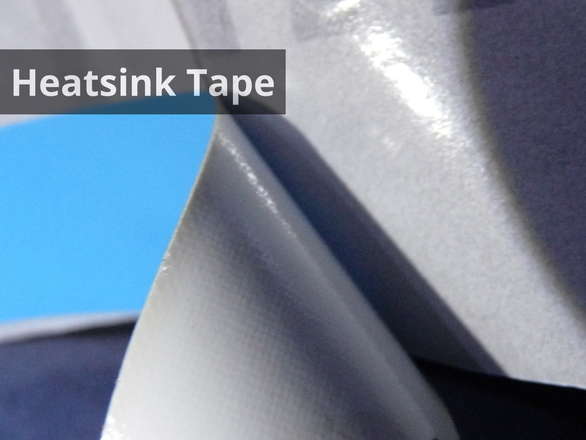

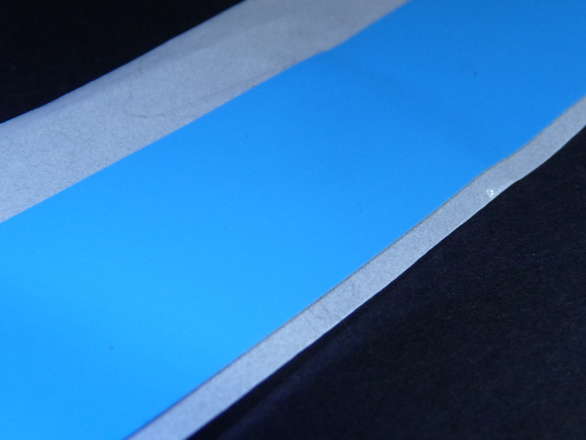

This is approx 20cm long strip of double sided thermal transfer tape (otherwise known as heatsink tape). It's a white glass fibre based tape with an blue cover film that you peel off.
Perfect for sticking led mounting plates onto heatsinks (or bit metal things that will work as a heatsink )).
Also good for sticking small heatsinks onto other things, like, ICs, transistors, circuit boards...
Just cut a section, peel off the backing paper, stick it onto your thing to be stuck firmly, peel off the blue cover tape (which is a bit fiddly, use the tip of a craft knife), and stick your now sticky thing onto your other not sticky thing pressing it down firmly again. Easy as that.
~25mm Wide
~20cm Length
Material is glass fibre with a thermal conductivity of 1.0 W/m-k
Long term temperature resistance, 120C, short term 180C
You might ask, what's a 1.0 W/m-k, well easiest way is to say it's similar to the thermal conductivity in the low-range of thermal grease and thermal epoxy, check out this thermal conductivity chart from wikipedia
