This product information has been archived and is not currently planned for restocking.
Please feel free to contact us to discuss this product, we can possibly suggest an alternative or see if it can be sourced specially for you.

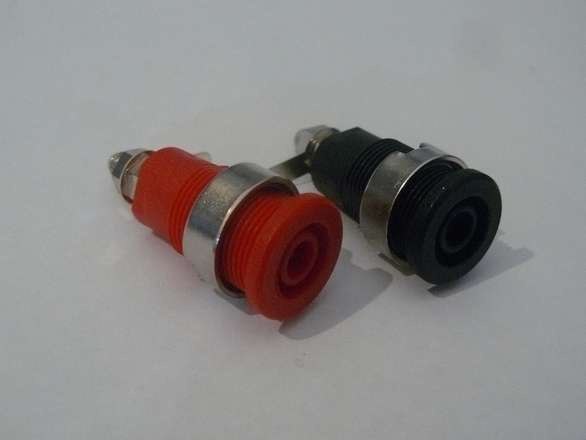

As shown, a pair, one red and one black of standard 4mm Banana Socket (Safety Type but will of course also accept standard non-safety banana plugs).
Bezel is 14.5mm diameter, hole required 12mm diameter, about 31mm total length behind the panel. There is a flat-side if you want to key your hole.
WIre connection is double-nut if you want to use a ring/fork terminal, but also includes a solder-tab tail if you want to solder your wire on.
These a great for your DIY test equipment, power supplies, dummy loads, resistance boxes and so forth.
SUPPOSEDLY these are rated to a whopping 32A (and 1000V) but I have not tested that, so tread carefully if you are drawing more than about half of that rating, you know how optimistic Chinese market sellers are )
See my other listings for good quality Banana plugs which will fit into these sockets.
