Pogo Pins, Pogo Pin Sockets, 4pcs Pack, You Choose

Details

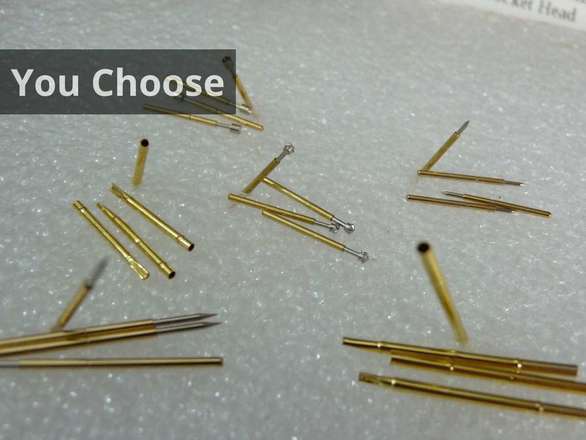

This is a pack of 4 pogo pins or pogo sockets.  I have the following packs available…

• Concave P75-A2 (4 Pcs); or
• Straight P75-B1 (4 Pcs); or
• Large Head P75-LM2 (4 Pcs); or
• Large Straight P100-B1 (4 Pcs); or
• R75-2S Socket For P75 (4 Pcs) - Currently Out Of Stock; or
• R100-4S Socket For P100 (4 Pcs)

Pogo pins are tiny sprung conductive pins, that (unsurprisingly) resemble a miniature pogo stick. Typically used for making test jigs for your electronics.

Pogo sockets allow you to plug in pogo pins so they can be replaced, or removed for a reconfigurable jig.  You don’t have to use sockets with pins, you can solder directly to the pins if you want but sockets can make the job easier.

P75– A2/B1/LM2 Pins, R75 -2S Sockets

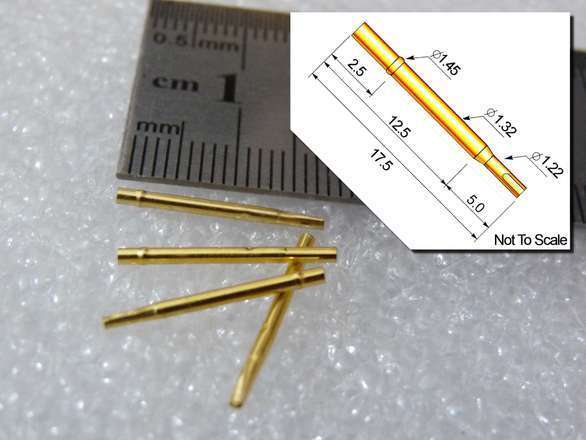

Pins have 1.02mm OD, sockets have 1.32mm OD with 1.45mm OD rib.

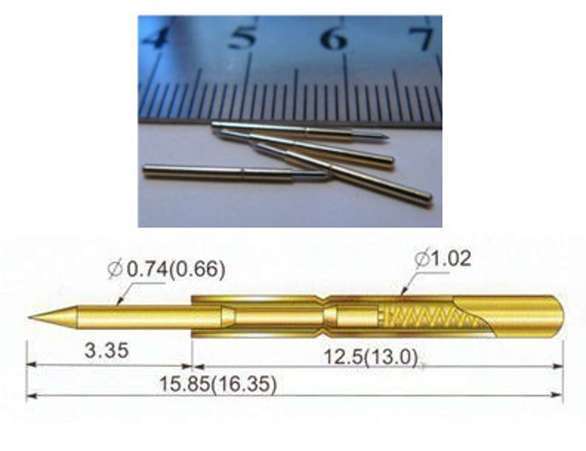

B1 pin has a narrow straight pointed head good for locating directly onto a test pad or SMD component pin (OD of head is 0.74mm)

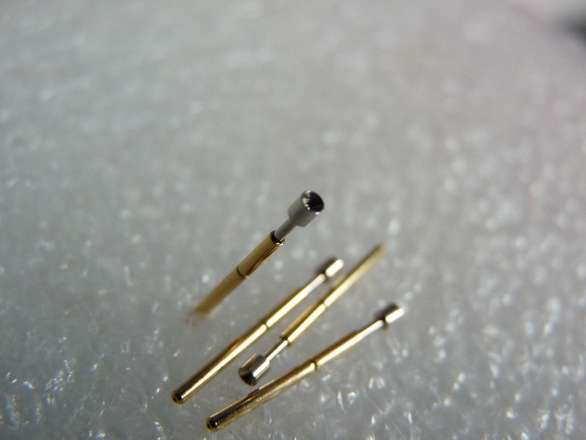

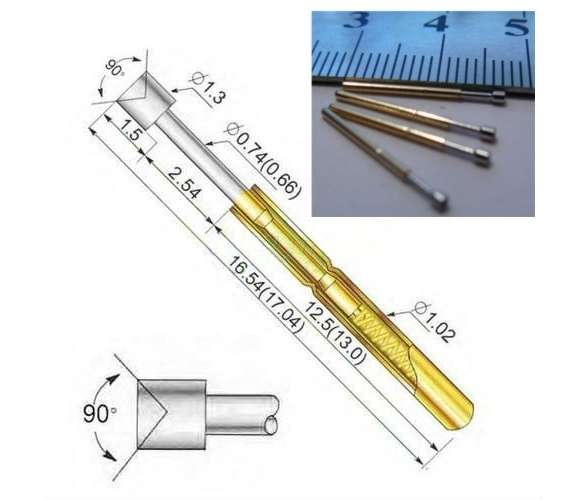

A2 pin has a concave head, this makes them ideal for locating on to soldered and trimmed leg of a through hole component on the bottom of your PCB, or down onto the top of a pin header.

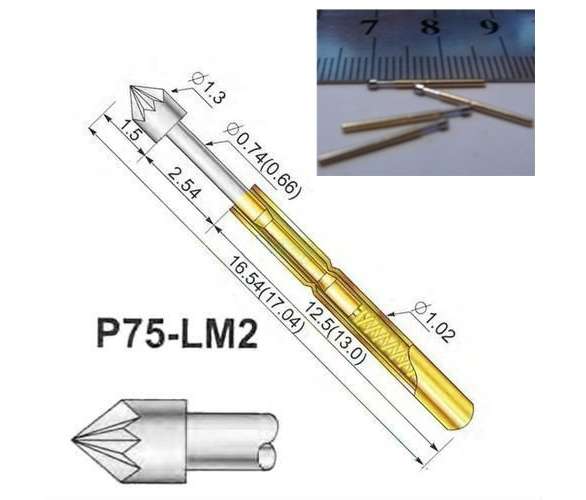

LM2 has a larger pointed head for when you are locating into a plated hole (OD of head is 1.3mm)

P100–B1 Pins, R100-4S Sockets

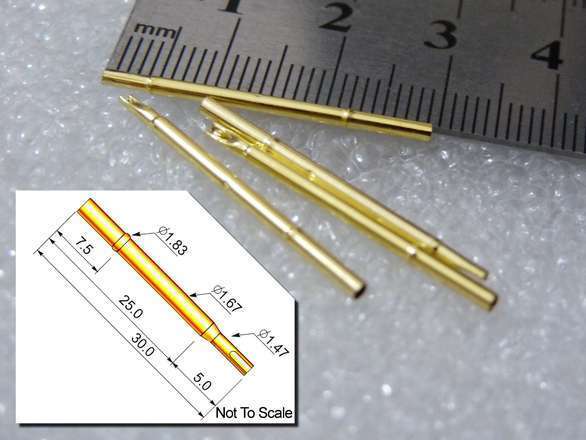

Pins have 1.36mm OD, sockets have 1.67mm OD with 1.83mm OD rib

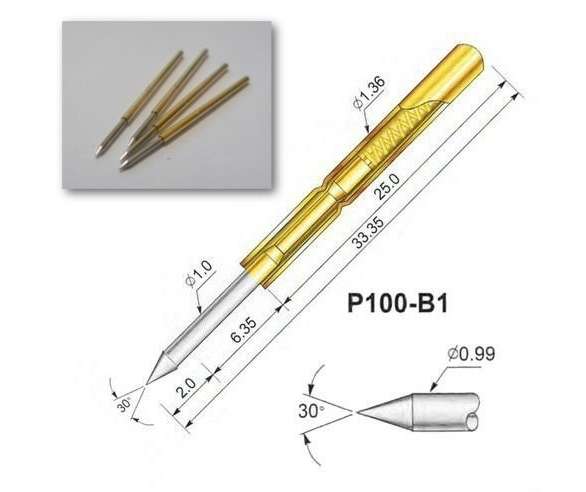

B1 pin has a straight pointed head good for locating onto a test pad or into a plated hole (OD of the head is 1.0mm)
