This is a two wire (5v power only) panel mount USB Type-C connector, you choose from:
They have JST PH plugs on the end (of course, feel free to snip and replace with whatever).

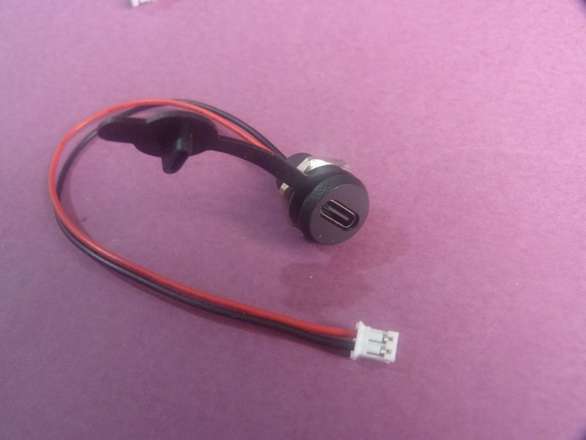

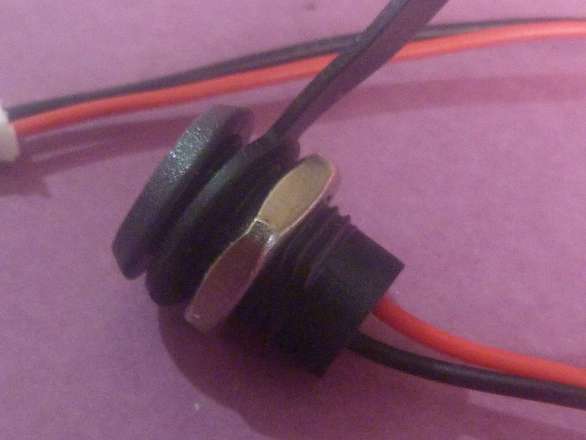

The round screw/nut ones you will want a hole about 11 to 12mm wide and maximum panel thickness about 10mm.

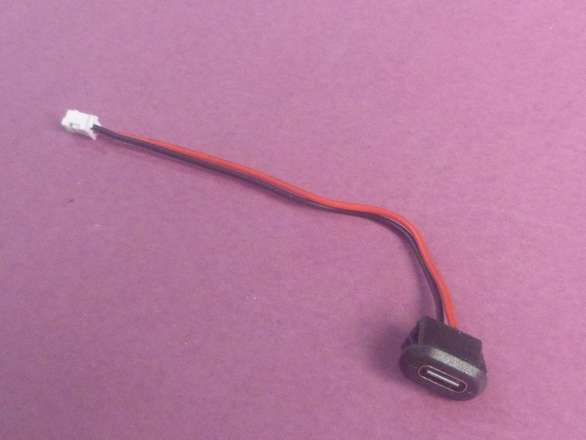

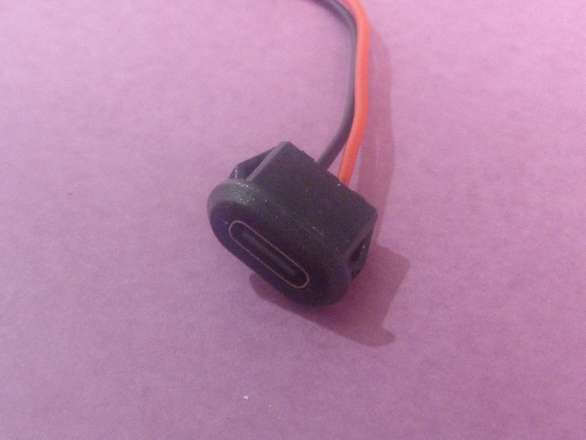

The rectangular push-in ones you will want a hole about 5mm high and 12mm wide, and your panel should be no more than 1-2mm thick I would say.
IMPORTANT NOTE! These 2-wire sockets may not work well for Type-C to Type-C cables, if the other end of your cable has an old-school USB connector (A, Mini, Micro, B) that is fine (as long as the cable is sensibly made), but if your cable is a Type-C to Type-C then it’s going to depend on what’s at the other end, dumb chargers probably fine, smarter chargers… YMMV.
