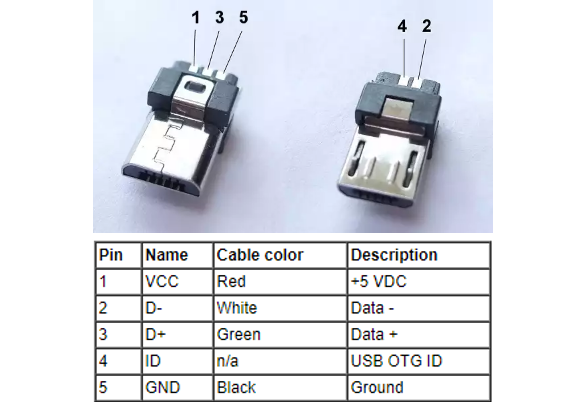

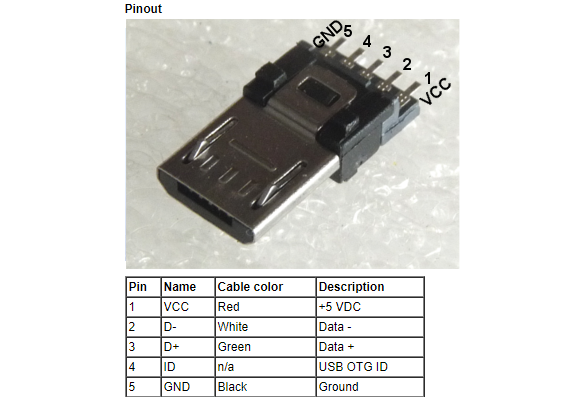

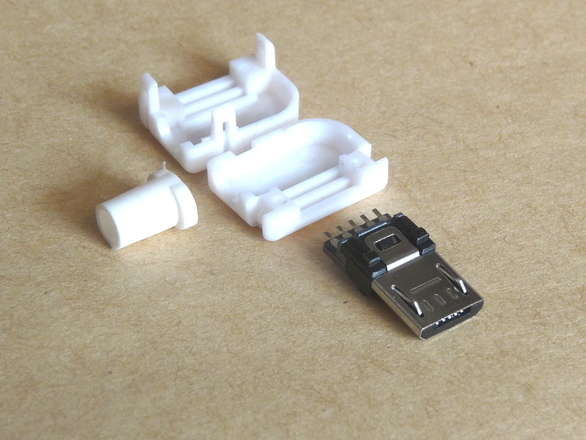

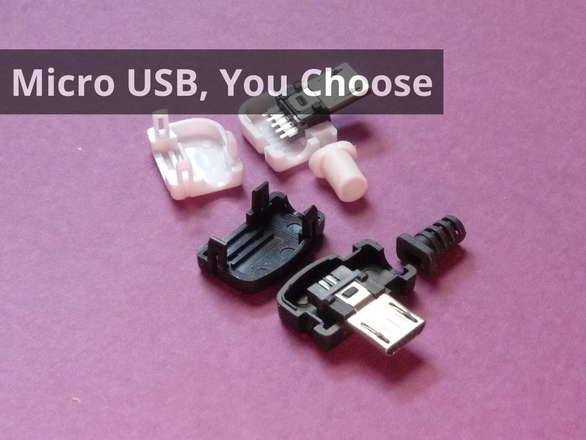

What can I say, this is a Right Angle USB Micro-B Male Plug, they have a 2 part plastic shell. There are solder pads for the 5 connections – depending on batch the pins are either 5 in a row, or 3 on one side, 2 on the other, if it matters to you ask first. You choose colour..
Space is pretty tight in the shell so your wires are going to have to be thin and your soldering skills a little sharper than for standard plugs. The strain relief can be removed if you need to fit a slightly coated wire in.
Great if you want to hard wire your latest creation to a USB cable, no need to sacrifice one, just make your own, to your own specifications.
I also stock Micro-B PCB sockets in both surface and already pre-soldered on a handy breakout board, check my other listings.
All of our products are shipped from Christchurch, New Zealand using CourierPost for NZ, and Airmail for international.
