This is a listing for 50cm (half a meter) of soft and super flexible stranded 18 AWG Silicone Wire, each "item" you buy is half a meter - if you want a meter, buy quantity 2, if you want 1.5 meters buy quantity 3, you get the idea.

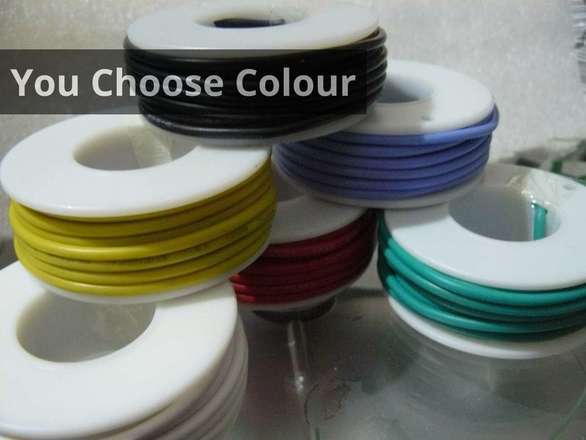

Note that reel shown in picture is not included, you are buying a cut length of wire.
You can choose from the following colours...
you must tell me which colour(s) you want, I can't send your order until I know what to send!
This is super soft and flexible wire, great for making up your own test leads etc.
Exact shade of colour, thickness of insulation, may vary slightly batch to batch.
Here are the specifications I have:
150 strands, tinned oxygen-free copper, 0.08mm/strand, 0.75 mm^2 total cross sectional area (18 AWG)
Outside Diameter: About 2.5mm
Temperature range: -60C to 200C
As for current rating, a rule of thumb calculation (cross sectional area multiplied by 25) gives about 18A as a maximum value.
About the RULE OF THUMB for Silicone Wire Ampacity
