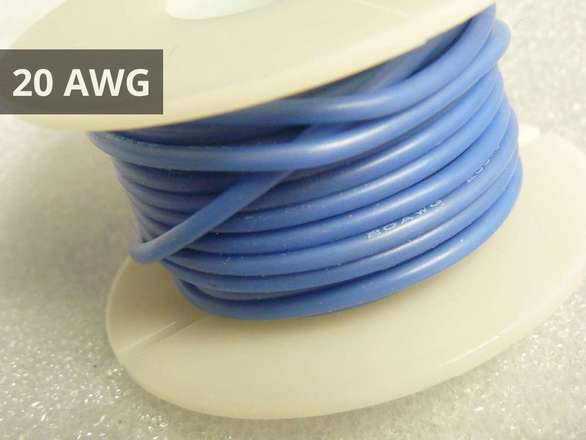

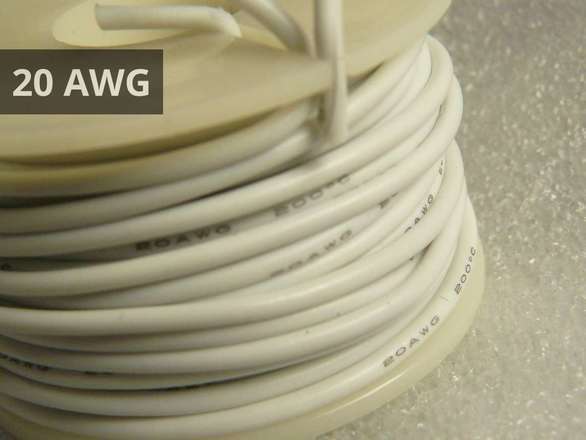

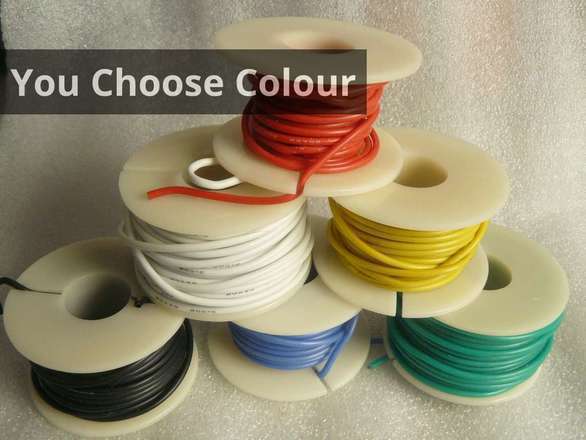

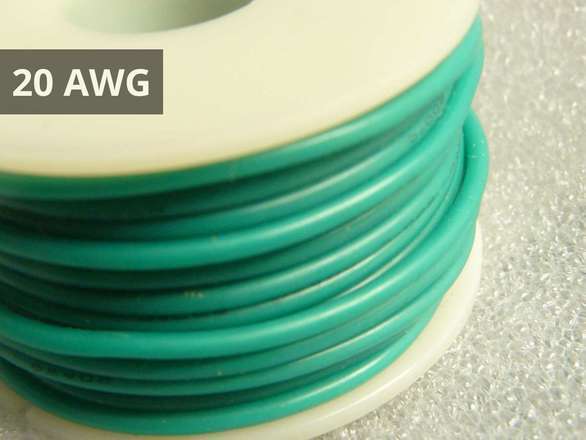

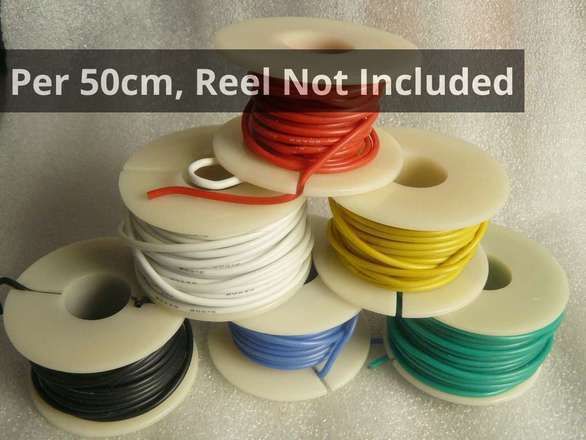

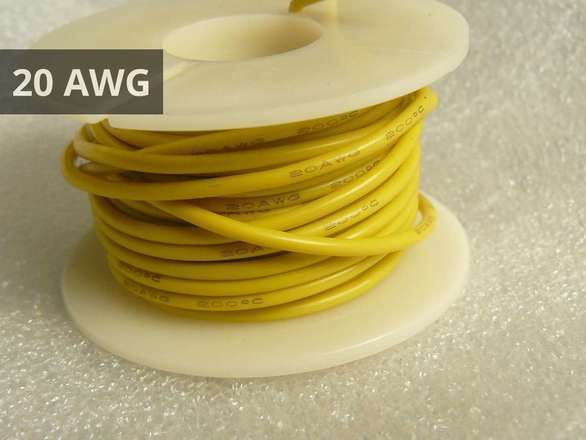

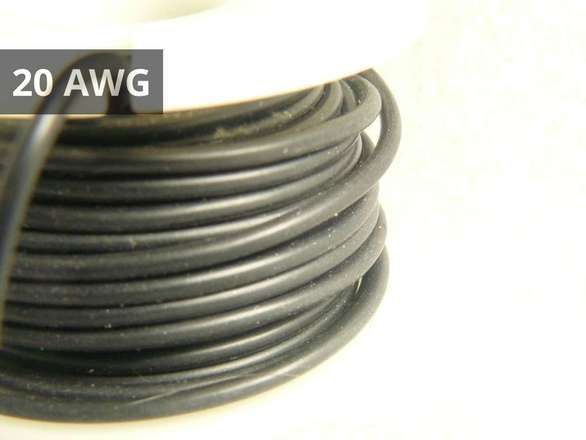

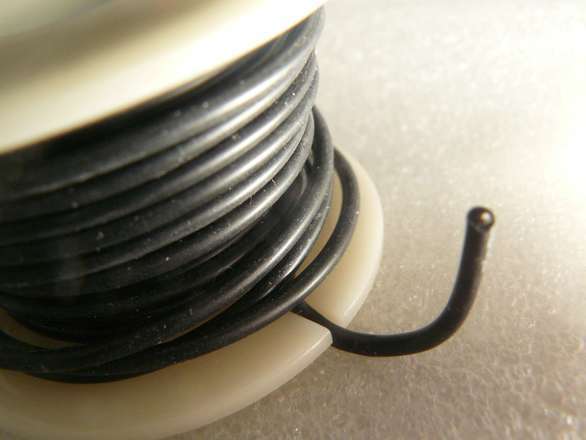

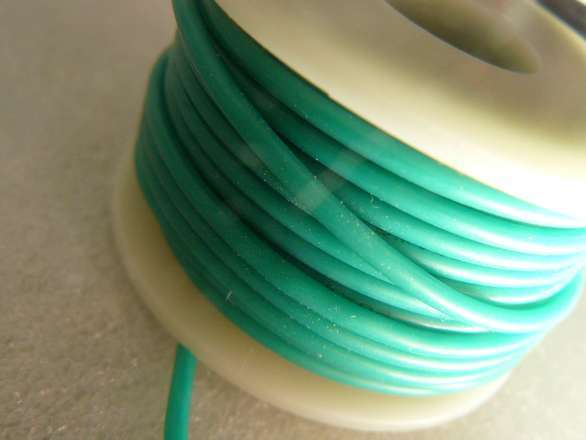

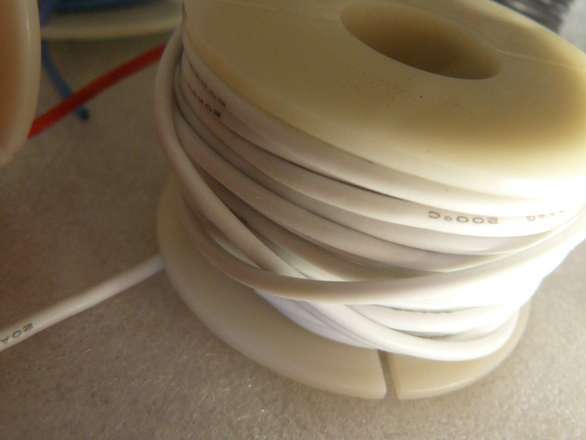

This is a listing for 50cm (half a meter) of soft and super flexible stranded 20 AWG Silicone Wire, each "item" you buy is half a meter - if you want a meter, buy quantity 2, if you want 1.5 meters buy quantity 3, you get the idea, you choose the colour you want…
This is super soft and flexible wire, great for making up your own test leads etc.

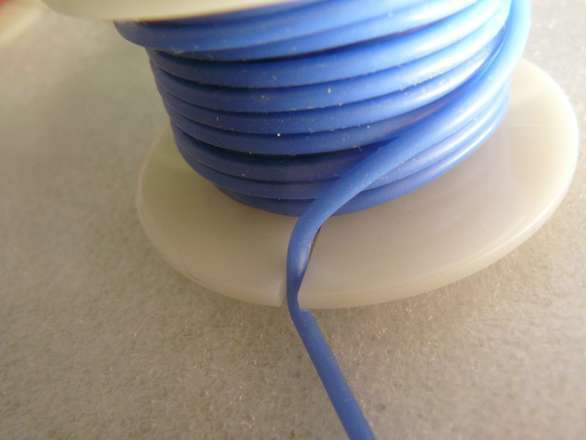

Note that because of the silicone sheath's excellent flexibility sometimes you get a little crinkle where it's rotated around the core, just roll it between your fingers to straighten it out if it bothers you, it's just cosmetic )
Here are the specifications I have:
100 strands, tinned oxygen-free copper, 0.08mm/strand, 0.5 mm^2 total cross sectional area (20 AWG)
Outside Diameter: 1.8mm
Temperature range: -60C to 200C
As for current rating, a rule of thumb calculation (cross sectional area multiplied by 25) gives about 12A as a maximum value.
About the RULE OF THUMB for Silicone Wire Ampacity
