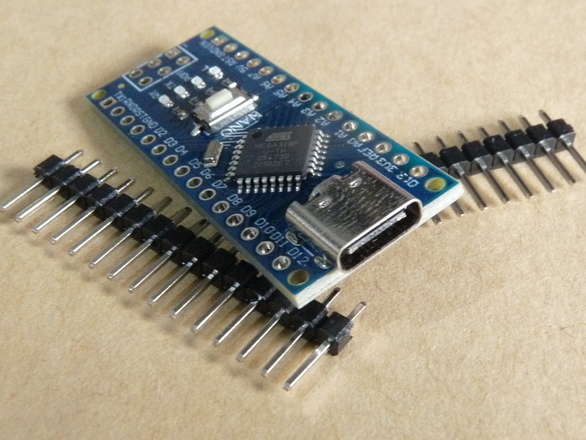

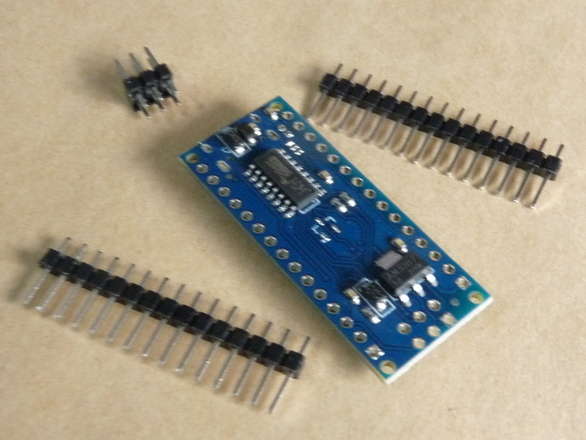

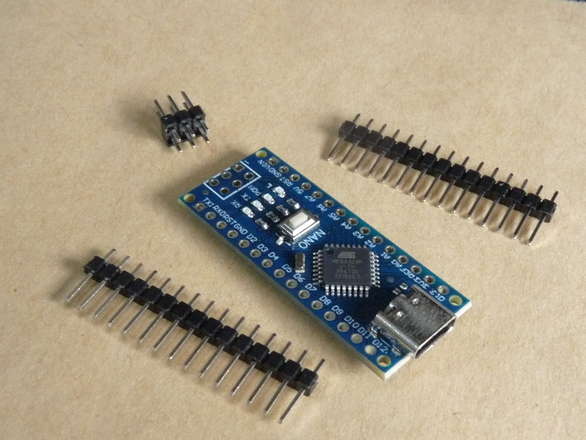

This is an Arduino Development Environment Compatible Nano, with an ATMega 328 (5v, 16Mhz).
The Nano is a teency weency micro controller board, barely larger than a DIP chip.
USB connectivity over a Type C connector is provided by the CH340, drivers available for Windows, Mac and Linux Note that Type C can be a tricky beast and not all cables are created equal, I can’t guarantee that your specific Type C cable will work. I do however have some Type-C cables that I know work with these Arduino Type-C Nano.
Be sure to push the Type-C plug in fully, it’s easy to only push it in half-way and then you’ll only get power and not data!
USB Drivers Download: 283.mytrademe.info
Once you have the drivers installed simply select "Arduino Nano" from the Boards menu in the Arduino IDE.
Depending on IDE version you might might also have to choose "Processor > ATmega328P (Old Bootloader)".
All the usual Arduino features are there, including the extra A6 and A7 Analog Input pins, leds are present on TX, RX, Power, and of course the standard user controllable LED.
This Nano is completely compatible with Arduino IDE, perfect for hard wiring in to your project, at this price just leave it there for posterity!
For information about Arduino and to download the Arduino development software see arduino.cc
